Tern Orox S12 Electric Cargo Bike Pre-Order with 4% Discount Arriving May 2024
Experience ultimate freedom with the Tern Orox S12 Adventure Cargo bike. Designed to tackle extreme conditions and conquer any terrain, this rugged trooper boasts unparalleled durability and versatility. With the capacity to accommodate up to two XL batteries, each delivering immense power, the Orox redefines off-grid exploration. With a massive Max Gross Vehicle Weight of up to 210 kg (462 lb), the Orox sets a new standard in cargo capacity, making it the perfect companion for your wildest adventures.
Pre-Order with 4% Discount Arriving May 2024
Available to Purchase via PayPal Credit
Explore New Ground
The Tern Orox Adventure Cargo bike defies extreme conditions, keeping you going on roads where needed. This tenacious trooper packs up to two XL batteries to power you through extended off-grid exploration, redefining what's possible by bike with a massive Max Gross Vehicle Weight.
GO ANYWHERE
Travel back in time as you trace railroad remnants hidden in the woods to mining ghost towns, or journey through diverse landscapes that span from lush green valleys to the rugged pinnacles of desert badlands. With incredible range and power, Orox lets you freely go on adventures unlike any other.
FORGET RANGE ANXIETY
Equipped with an ultra-high capacity Bosch PowerPack and dual-battery compatible for double the juice, Orox truly frees you from the iron grip of range anxiety. Ride longer and head deeper into the backcountry with immense range at your disposal. There’s no holding back now. Up to 161 km Single battery and Up to 322 km Optional dual battery.
Tame Tough Terrain
Orox turns No-Man’s Land into your very own playground. Massive, bespoke Schwalbe all- terrain tires or stud-compatible Vee Snowball tires with extra-wide footprint are capable of handling challenging surfaces with superb traction and cushy comfort, making loose gravel, ice, snow, sand, and mud no match for the bike.
OROX S12 HIGHLIGHTS
Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting
Custom 27.5" Schwalbe Johnny Watts all-terrain tires or 27.5" stud-compatible Vee Snowball tires take on even the toughest conditions
Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
Al-battery system draws from up to two batteries for ultra-long range
Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking

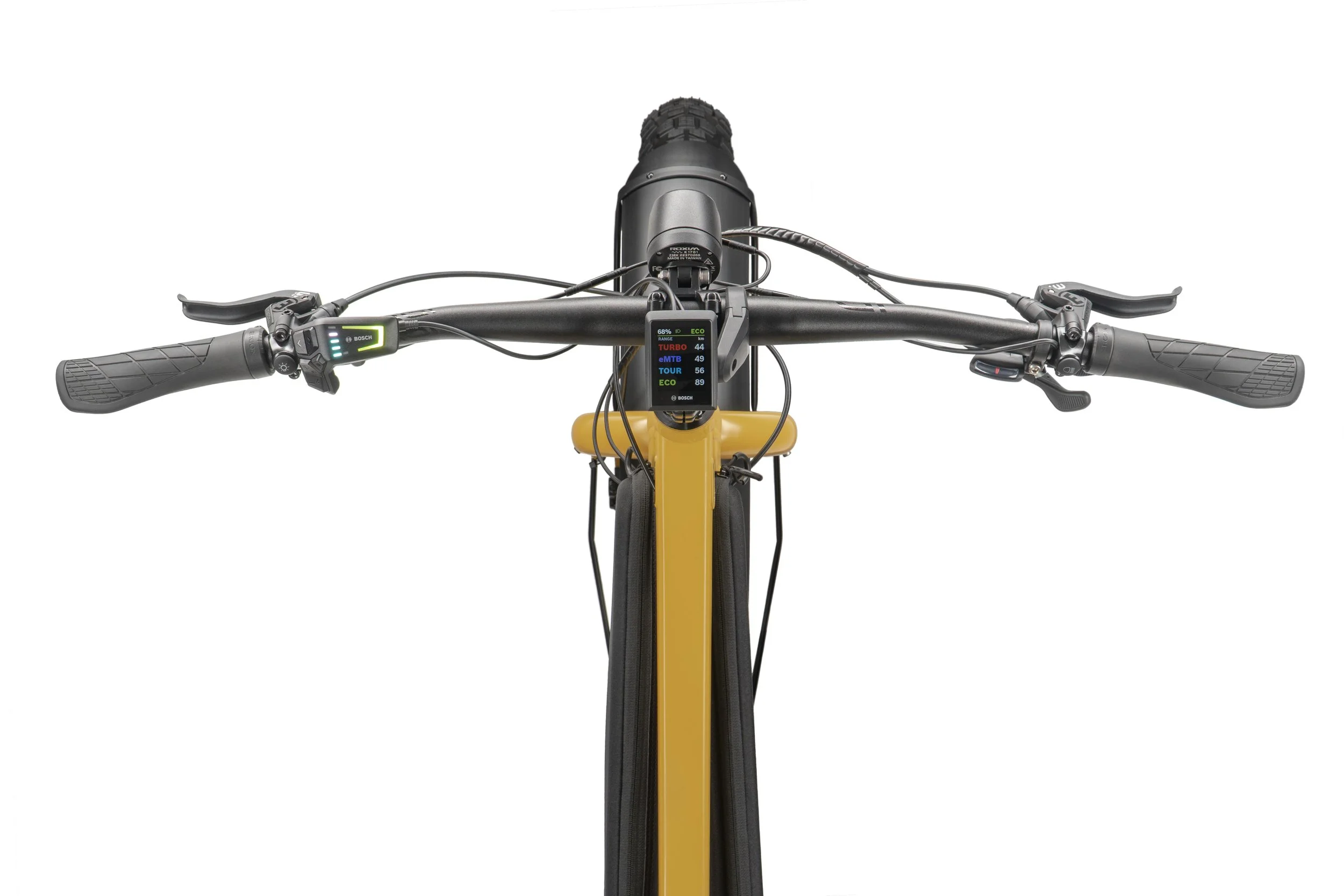

Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
Powerful and responsive Magura 4-piston hydraulic brakes EFBE-certified safe and reliable for massive hauls, with a Max
Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)
SPECIFICATIONS
GENERAL INFO:
SPEEDS: 1 x 12
WEIGHT: M: 33.2 kg (73.2 lb)
GEAR INCHES: 18" - 95" (1.48 - 7.54 m)
FRAME SIZES: M, L
DISTANCE: SEATPOST TO HANDLEBAR: M: 61 - 66 cm (24 - 26 in); L: 67 - 73 cm (26.4 - 28.7 in)
DISTANCE: SADDLE TO PEDAL: M: 71 - 99 cm (28 - 39 in); L: 76.5 - 104.5 cm (30.1 - 41.1 in)
SUGGESTED RIDER HEIGHT: M: 155 - 185 cm (61 - 72.8 in); L: 165 - 195 cm (65 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: On-road: 210 kg (463 lb); Off-road: 180 kg (396.8 lb)
MAX RIDER WEIGHT: 130 kg (286.6 lb)
PARTS:
FRAME: Tern Orox, 6061-AL, patented design, EFBE tested and approved
FORK: Atlas X, butted chromoly steel, EFBE tested and approved
STEM: Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
HEADSET: FSA, 1.5", angular contact bearings
HANDLEBAR: Level Nine, AL-7050, 800 mm, riser, eMTB approved
GRIPS/BAR TAPE: Ergon
SADDLE: Ergon SM, E-Mountain Sport, CrMo Rail
SEATPOST: Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
SEATPOST CLAMP: Tern Collar
BRAKES: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
BRAKE LEVERS: Magura MT5, hydraulic
BRAKE CABLE & HOUSING: Magura, hydraulic
WHEELS: Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
FRONT HUB: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
REAR HUB: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
SPOKES & NIPPLES: Stainless steel
RIMS: Tern Atlas X, custom doublewall construction
TIRES: Vee Snow Ball, 27.5 x 4 or Schwalbe Johnny Watts 27.5" x 4"
SHIFTER(S): Shimano Deore, 1 x 12 spd
REAR DERAILLEUR: Shimano Deore XT Shadow+
CRANKSET: Tern Orox custom
CASSETTE/FREEWHEEL: Shimano 10-51T, 12 spd
BOTTOM BRACKET: Motor integrated
CHAIN: KMC 12 spd, for eBike, EPT corrosion resistant coating
PEDALS: MTB, non-slip
SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM:
MOTOR: Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY: 725 Wh or 800 Wh, Bosch Dual Battery pack ready
DISPLAY: Bosch Kiox 300 w/ LED remote, electronic bike lock
RANGE: 725 Wh: 84 - 146 km (52 - 91 mi); 800 Wh: 93 - 161 km (58 -100 mi); 1450 Wh: 168 - 292 km (104 - 181 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)
CHARGER: 220V, 4A (EU); 100-240V, 4A (US)
CONNECT MODULE: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
BELLS & WHISTLES:
BELL: Pitch Plus, brass
TOOL: Thru-axle lever, 4/5 mm, Torx 2.5 mm
CHAINGUARD: Custom Bash Guard
PAINT PROTECTION: ToughShield film on top and downtube, self-healing
KICKSTAND: Atlas Kickstand XL Cargo ready
FRONT LIGHT: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
REAR LIGHT: LED w/ G-Sensed Brake Light
FENDERS: Aluminum, heavy duty construction, oversize stays, 27.5"
RACK(S): Atlas X, 100 kg (220 lb) capacity
