Sporty, quick and ready to move.
Modern efficient energy source
Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimises your bike's range. You can choose the battery capacity that suits you: 400 or 500 Wh. The battery is secured with a lock on your rear carrier and is easily removed using your bike key. Convenient, as you can charge the battery either on or off the bike.
Discover new places with Bosch's quiet, yet powerful motor
The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.

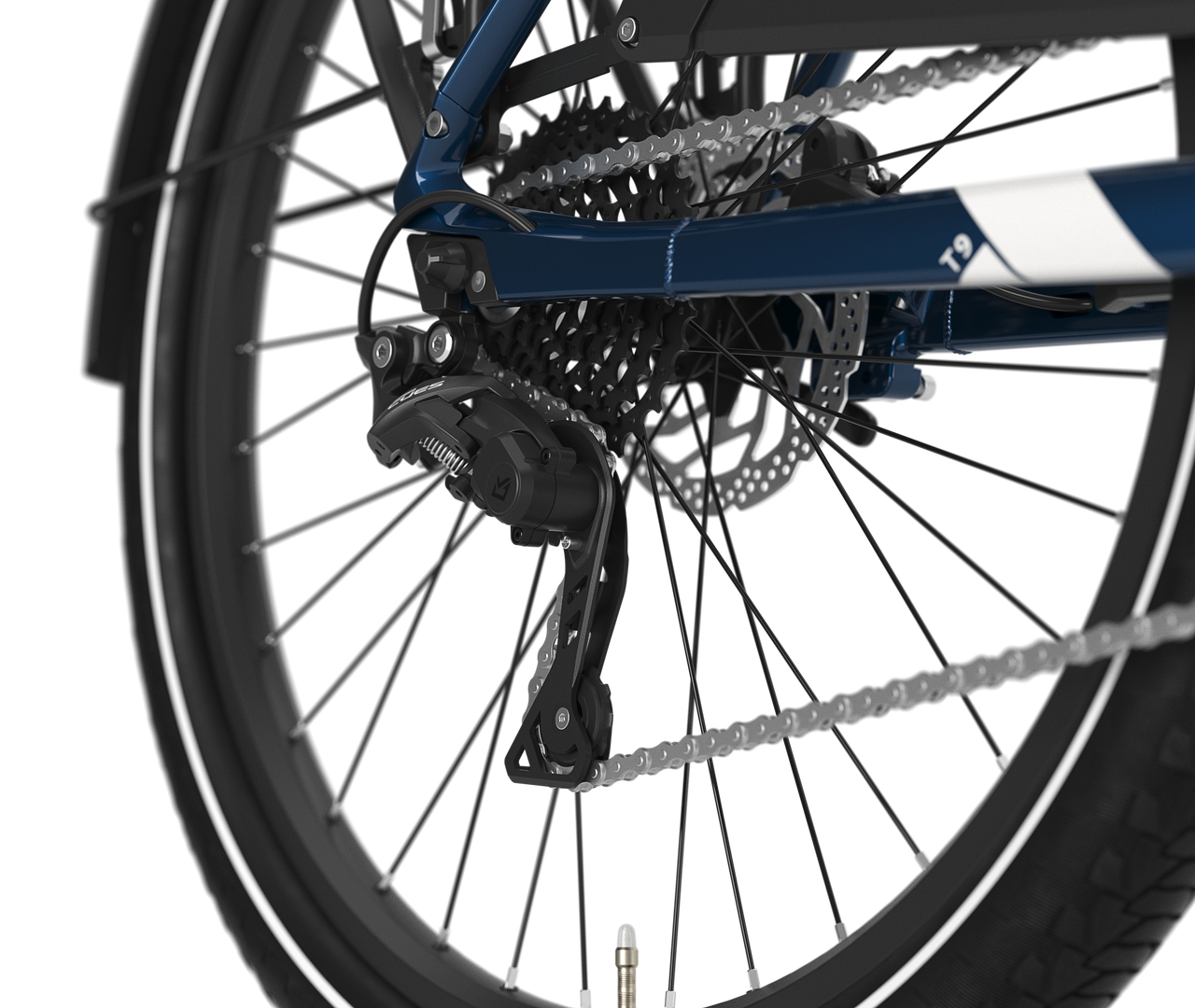

Choose your optimum gear
With the tried-and-tested Shimano derailleur gearing system, you can choose the gear that feels right for you, at any time. Shimano guarantees reliable shifting performance and years of flawless operation. You have 9 gears at your disposal that are easy to operate from the handlebars. The chain is specially reinforced for e-bikes and is designed to cope with the forces generated when shifting gears under load.

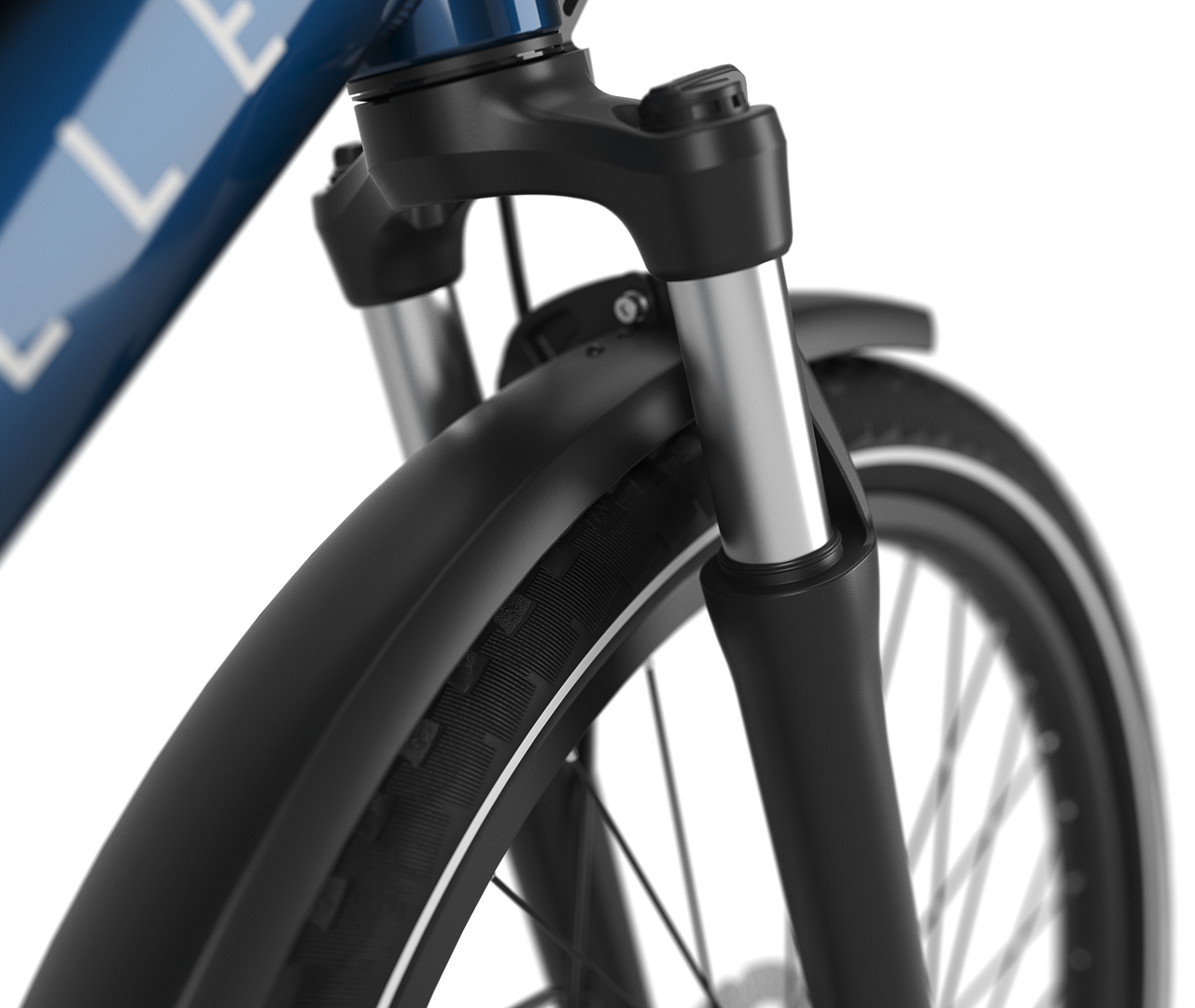

Less jarring on bumpy roads

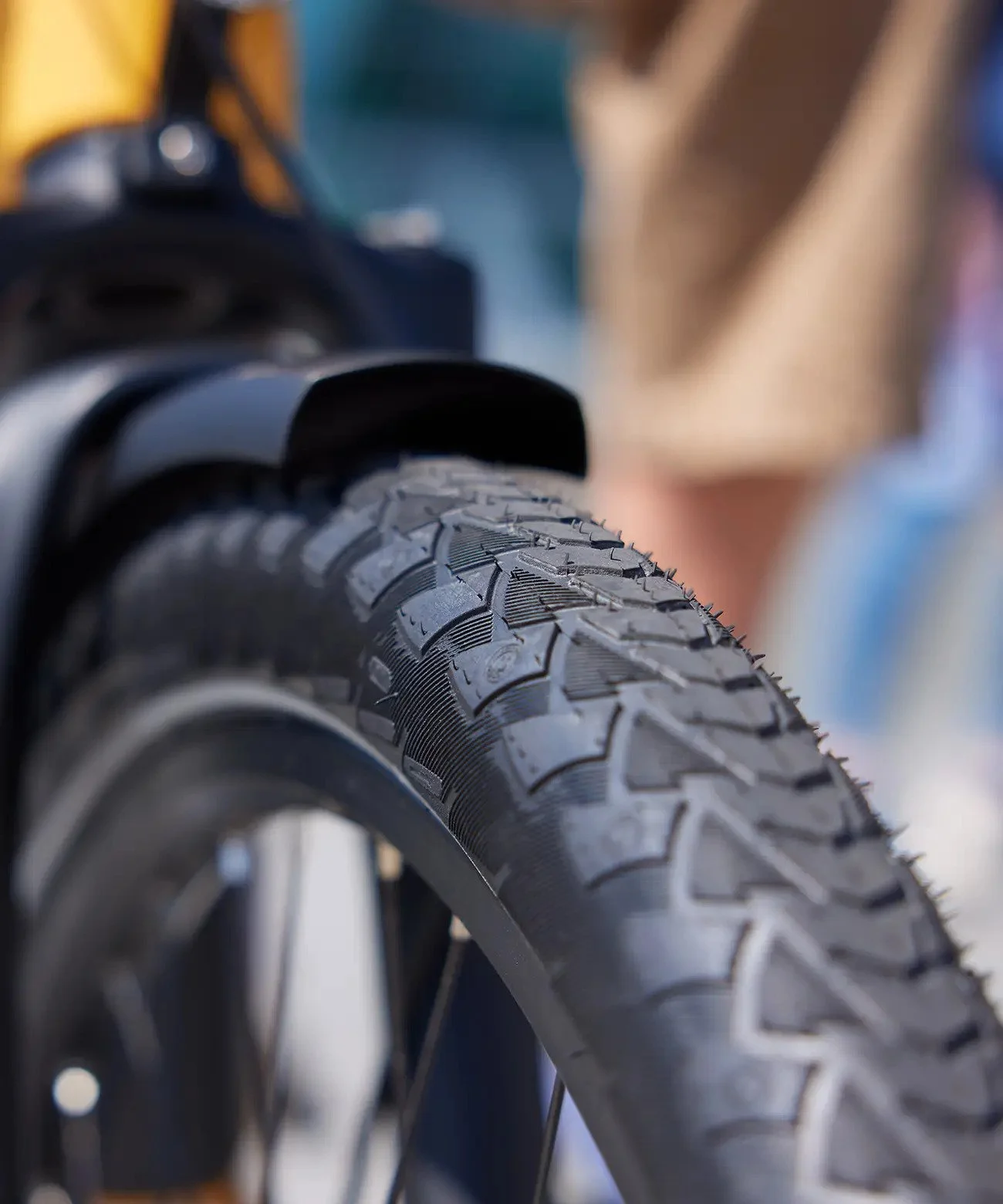

In terms of comfort, the Medeo T9 HMB is a great choice. The e-bike has wide, anti-puncture tyres that make it a little bit easier to ride over bumps in the road surface. In addition, the bike has a front suspension fork. A cobbled path will feel like cycling on a smooth tarmacked road. With such great riding comfort, you'll also get off the bike fresher and fitter after your commute or a long ride.

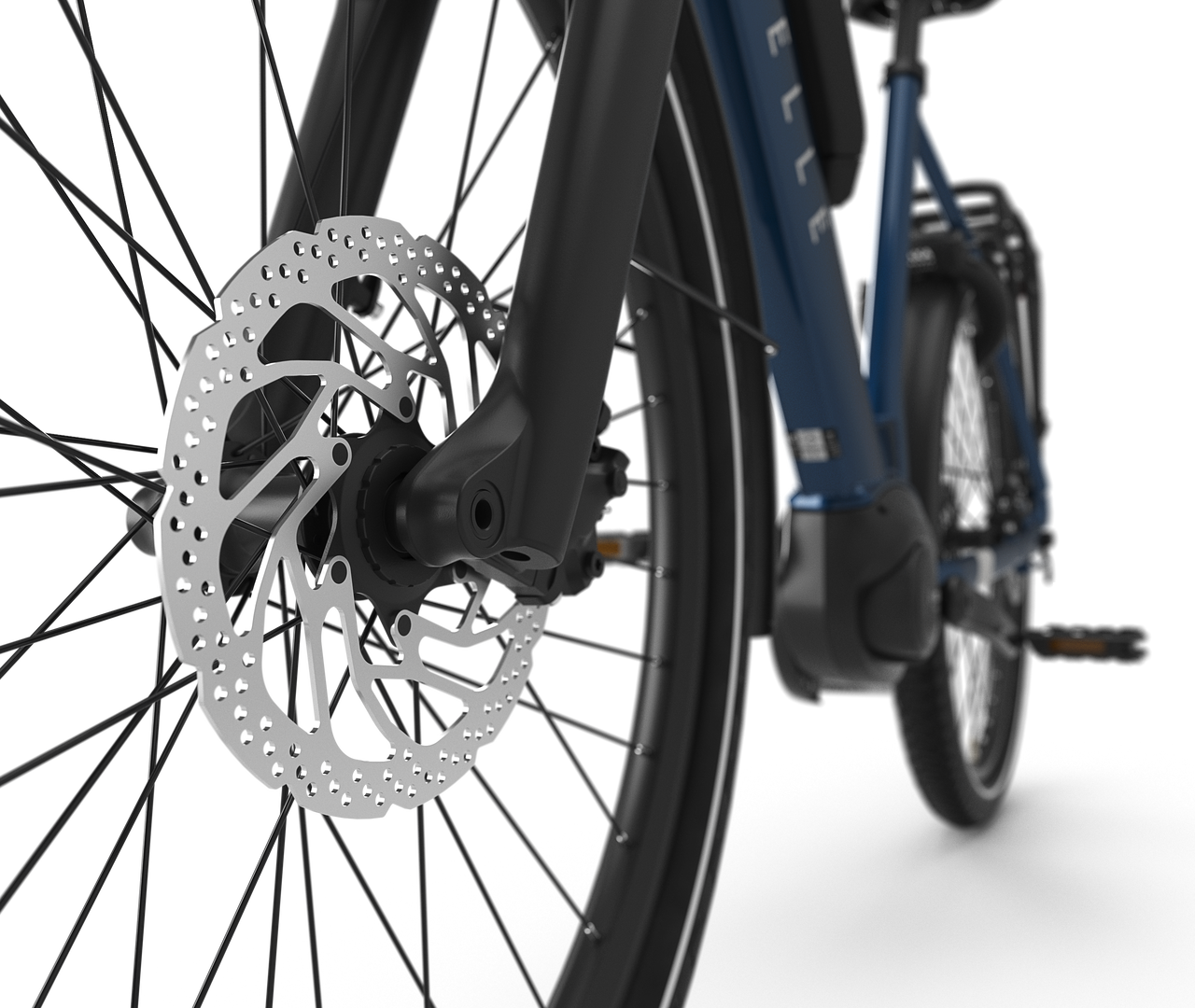

Powerful and controlled braking
With an advanced e-bike like the Medeo T9 HMB, you want to be able to brake safely without even thinking about it. Hydraulic disc brakes are therefore indispensable, as they provide the braking power and the precision for controlled braking at all times — even when it's raining or the roads are wet.
Specifications
-
Colour: 375 Gloss, 904 Gloss, 909 Gloss
Fork suspension: Telescope, spiral spring
Gear Type: Derailleur
-
Weight: 23.1 WithoutBattery
Colour: 375 Gloss, 904 Gloss, 909 Gloss
Bike Max. Total Weight (kg): 130
Sitting Position: Sportive
-
Frame
Grips: Herrmans HerrmannsDD36, plastic wear-resistant handlebar grips for a firm grasp
Frame description: Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
Frame material: Aluminum
Cockpit Cable Integration: Yes
Frame shape: High-Step, Low-Step
Frame sizes: L (55) , M (50) , S (45) , XL (60) , XS (40)
Frame Size CM: 40, 45, 50, 55, 60
Fork
Fork: SRSuntour SuntourMobieA32DS
Fork description: Suntour MOBIE A32 DS
Fork Material: Aluminum
Fork suspension: Telescope, spiral spring
Fork lockout: Yes
-
Wheels
Front wheel: 38
Rear wheel:
Front rim
Ryde RydeBigBull, double-walled aluminium for extra strong and efficient cycling performance
Rear rim: Ryde RydeBigBull, double-walled aluminium for extra strong and efficient cycling performance
Front hub: Shimano
WheelSize Front: 27.5"
Tires
Wheels Tire Front Etrto: 62-584
Front tyre: Continental ContiContactPlus
Rear tyre: Continental ContiContactPlus
Wheels Tire Front Description: Continental eContact Plus
-
Gears
Brand shifters: Shimano
Gear: Shimano Shimano
Shifter: Shimano Deore
Cassette Range: 11-36
Gear Type: Derailleur
Number of gears: 9
Drivetrain
Rear derailleur: Shimano CuesU4000
Rear brake type: HydrDiscBrake, HydrDiscBrake / HydrDiscBrake
Front brake: Shimano MT2000
Rear brake: Shimano MT2000
Front sprocket: 38
Front chainwheel: 38
Drivetrain: Chain
Brakes
Front Brake Type: Hydraulic disc brake
Brake sytem code: S9
Front Brake Brand: Shimano
Primary Rear Brake Model: BR-MT200
Front brake: Shimano MT2000, 180
Rear brake: Shimano MT2000, 160
Rear Brake Lever: BLMT200
-
Handlebar
Handlebar: Herrmans HerrmannsDD36, plastic wear-resistant handlebar grips for a firm grasp
Stem adjustable: Yes
Cockpit Handlebar Grip Brand: Herrmans
Saddle
Saddle: DDK
Seatpost suspension: No
-
Front light
Front light: Axa AxaCL35
Front Light Energy Source: Battery
Front Light Lux: 35
Rear light
Rear Light Energy Source: Battery
Rear light: Axa AxaBluelineGAZ
-
Engine
Motor: Bosch Smart System Active Line Plus
System Model: Active Line Plus
Ebike System Brand: Bosch Smart System
Ebike Engine Position: Mid
Ebike Max Speed kmh: 25
Ebike Max Speed mph: 15
Engine Max Torque (Nm): 50
Battery
Charger: Bosch2 Ah
Ebike Battery Charger Description: 2 Ah
Battery Position: On the frame
Display
Display: Bosch Purion200
Support levels: Eco, Tour, Auto, Turbo
Ebike Walk Assist: Yes
Display Type: LCD
-
Warranty
Frame warranty: 10 year's warranty
Fork warranty: 5 year's warranty
Paint warranty: 5 year's warranty
Other parts warranty: 2 year's warranty
Battery warranty: 2 year's warranty
Motor warranty: 2 year's warranty
Display warranty: 2 year's warranty
-
Lock
Lock: Axa
Lock brand: Axa
ART classification: ART**
Other
Kickstand: UrsusMooi UrsusMooi
Carrier
Rear carrier description: Aluminum MIK system carrier
Carrier MIK Profile: Yes
Rear carrier max load (kg): 25
Rear carrier: Yes
