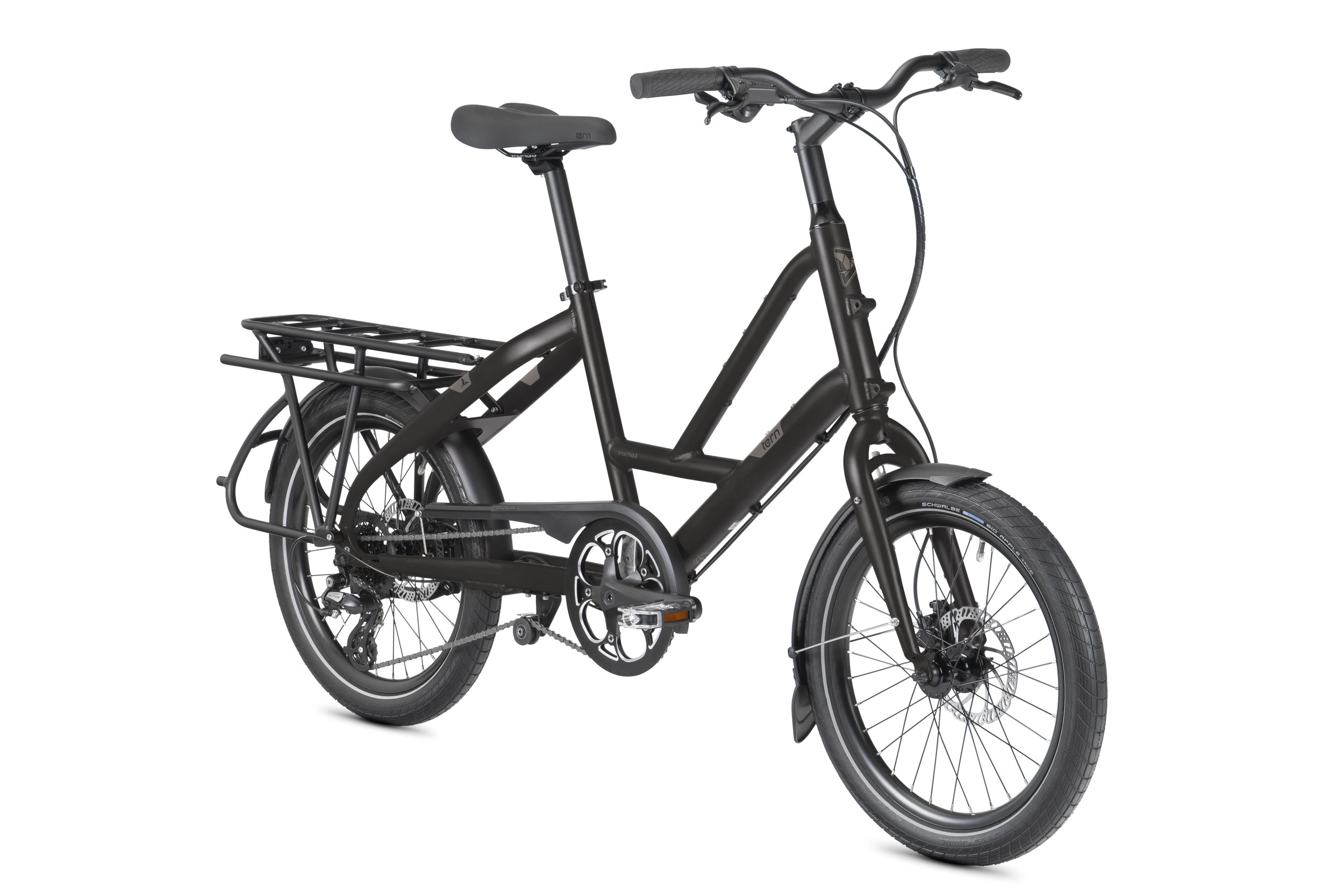

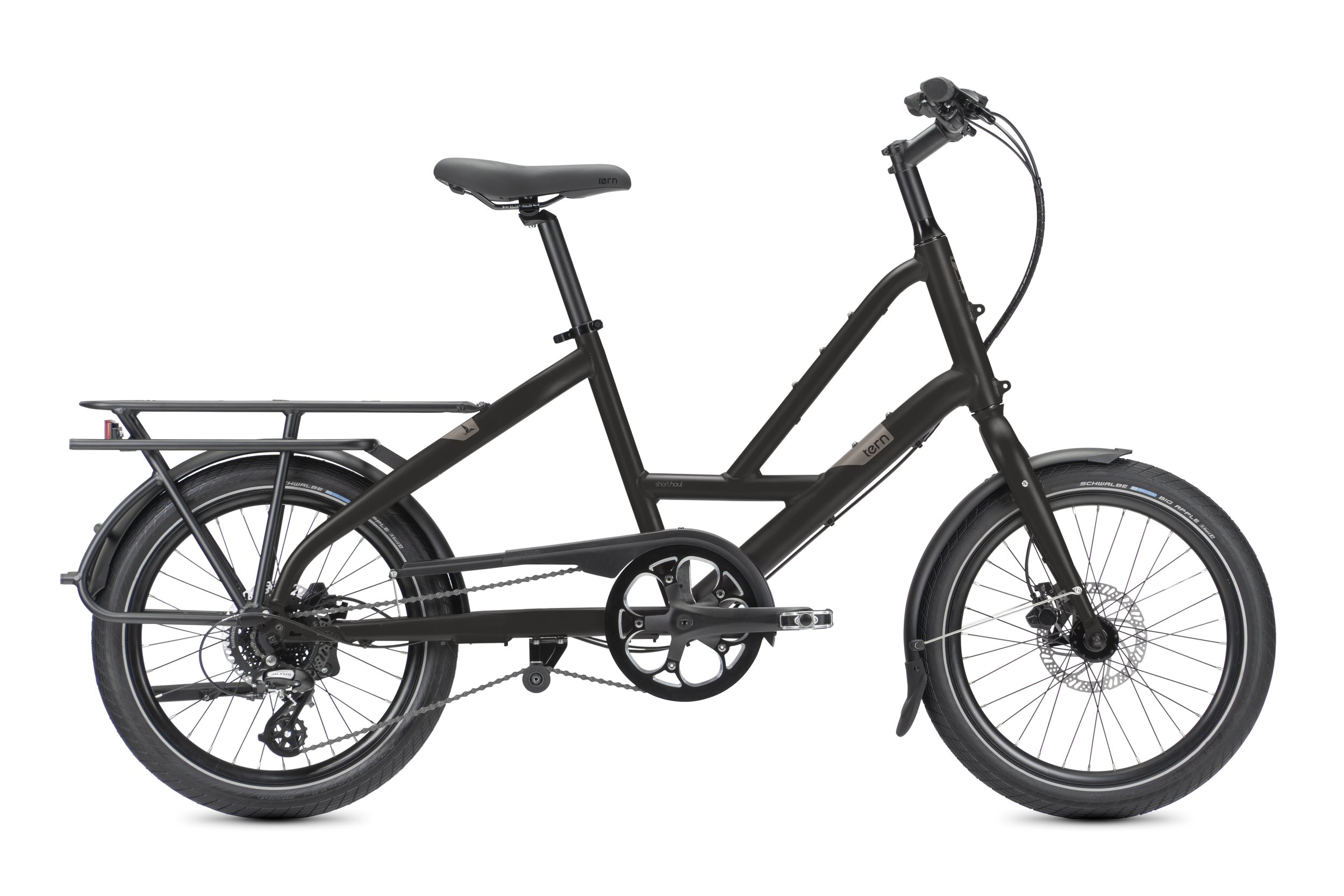

Tern Short Haul D8 in Black Cargo Bike
Simply Practical
The Short Haul is a compact cargo bike that makes it easy to get around town and get things done. Practical and uncomplicated, the Short Haul has everything the modern urban rider needs—nothing they don’t.
Simply Practical
The Short Haul is a compact cargo bike that makes it easy to get around town and get things done. Practical and uncomplicated, the Short Haul has everything the modern urban rider needs—nothing they don’t.
Simply Practical
The Short Haul is a compact cargo bike that makes it easy to get around town and get things done. Practical and uncomplicated, the Short Haul has everything the modern urban rider needs—nothing they don’t.
More About Tern Short Haul D8
Compact cargo bike that carries up to 50 kg on the rear rack, plus an additional 20 kg with optional front rack
Create your ideal setup with different accessory options to carry your kid, your stuff, or even your dog
Proven safe and reliable: frame and fork are EFBE-tested up to the 140 kg (308 lb) Maximum Gross Vehicle Weight
Fits riders of different heights from 147 - 190 cm (4’10” - 6’3”), weighing up to 120 kg (264 lb)
Low standover height (49 cm or 19”) makes (dis)mounting and waiting at stops easier
1x8-speed Shimano Altus derailleur with trigger shifter
Hydraulic disc brakes for great stopping power, even when carrying heavy loads
Specifications:
GENERAL INFO
SPEEDS: 1 x 8
WEIGHT: 16.1 kg (35.5 lb)
GEAR INCHES: 31" - 95" (2.45 - 7.57 m)
FRAME SIZES: One size
DISTANCE: SEATPOST TO HANDLEBAR: 60 - 64 cm (23.6 - 25.2 in)
DISTANCE: SADDLE TO PEDAL: 62 - 110 cm (24.4 - 43.3 in)
SUGGESTED RIDER HEIGHT: 147 - 190 cm (57.9 - 74.8 in)
MAX GROSS VEHICLE WEIGHT: 140 kg (308.6 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)
BRAKES
FRONT BRAKE: Hydraulic disc
REAR BRAKE: Hydraulic disc
BRAKE LEVERS: Hydraulic disc
BRAKE CABLE & HOUSING: Hydraulic disc
WHEELS
FRONT HUB: Disc, aluminum
REAR HUB: 8 spd, disc, aluminum
SPOKES & NIPPLES: Stainless steel
RIMS: Doublewall, for disc
TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex
FRAME
FRAME: Tern Short Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 140 kg

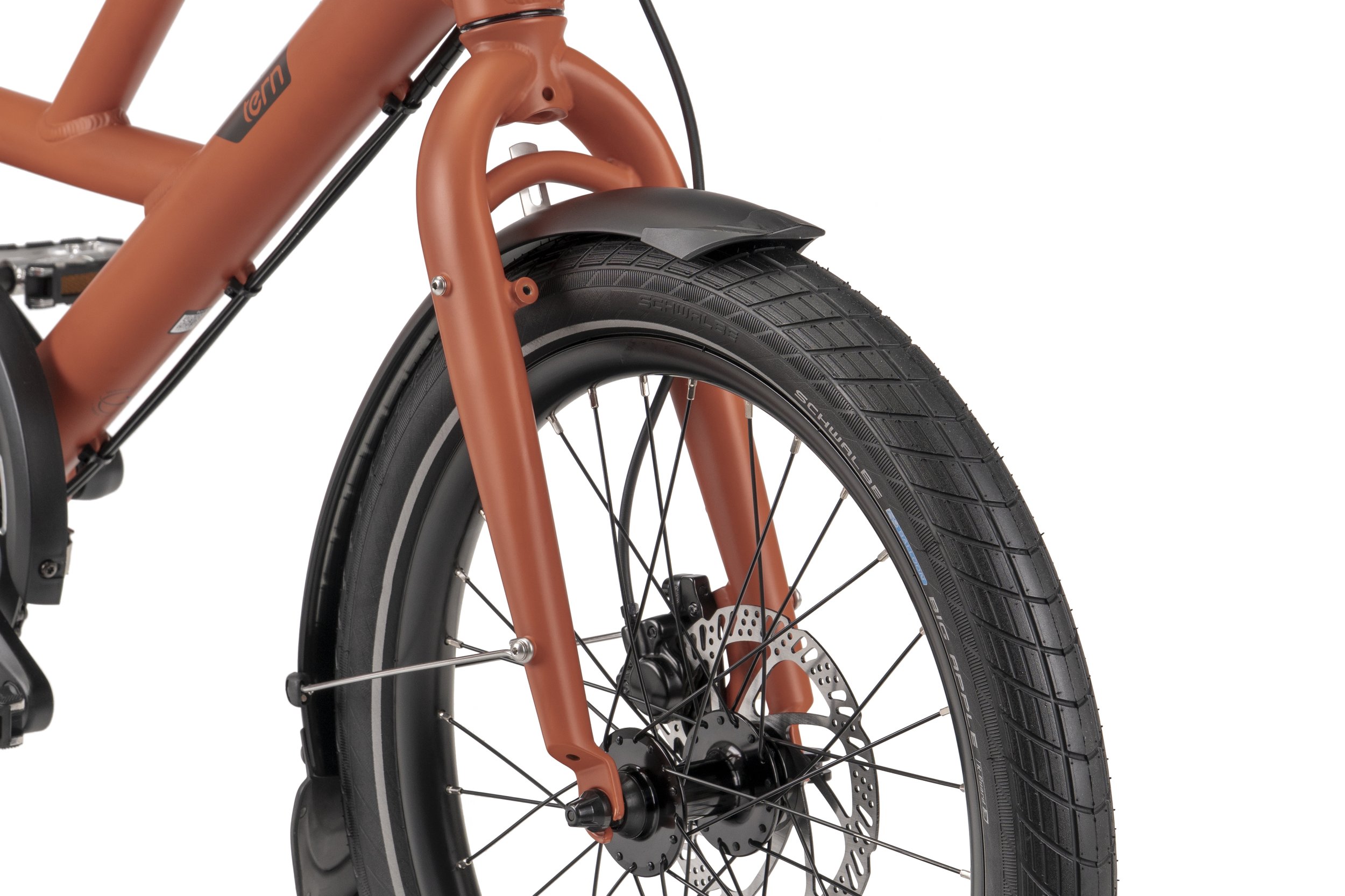

FORK: Steel, EFBE approved: 140 kg
TRANSMISSION
SHIFTER(S): 1 x 8 spd, trigger

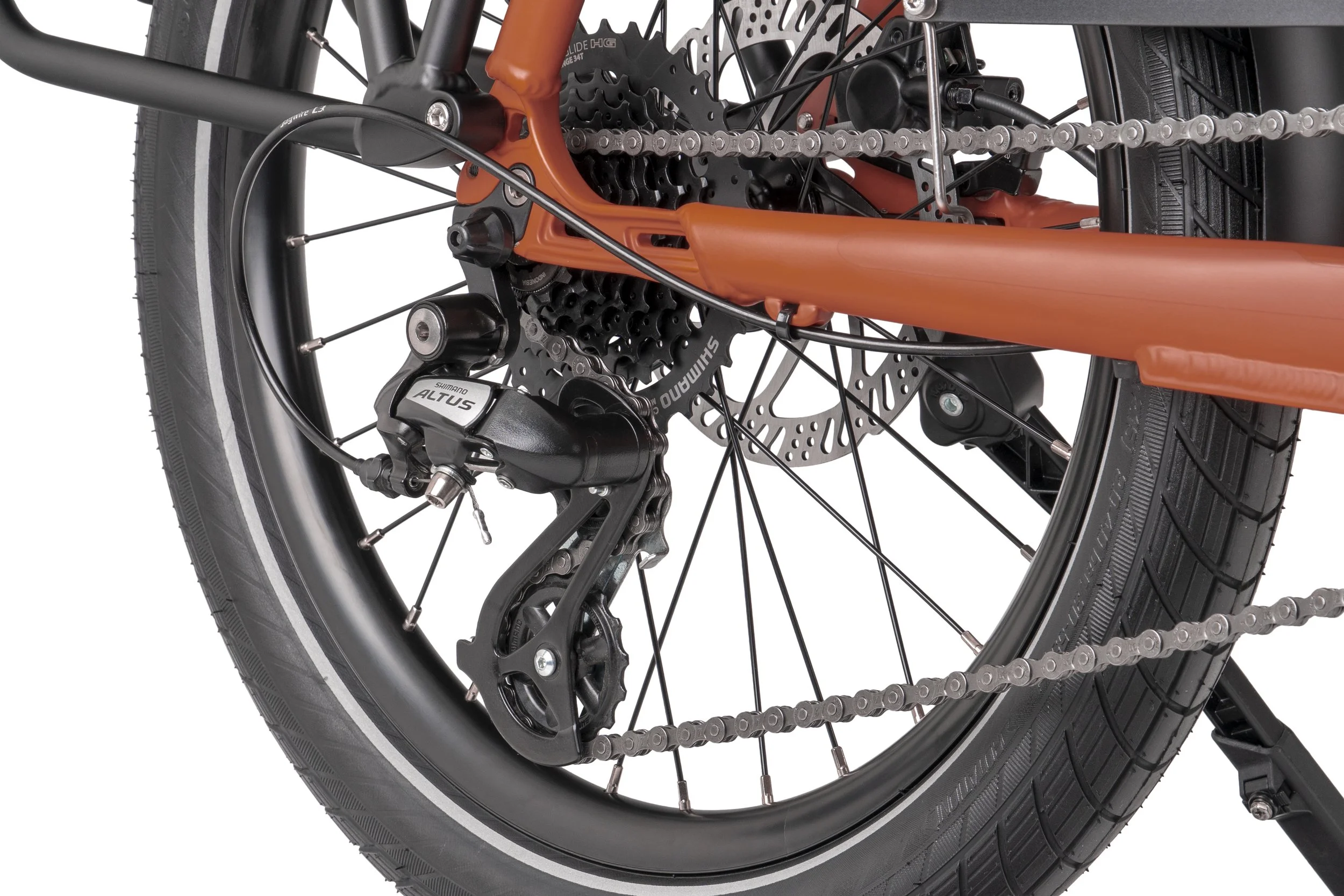

REAR DERAILLEUR: Shimano Altus
CRANKSET: Forged 6061-AL crankarm
CASSETTE/FREEWHEEL: 11-34T, 8 spd
BOTTOM BRACKET: FSA, Cartridge, sealed bearings
CHAIN: KMC, 8 spd
PEDALS: Urban with non-slip surface
SHIFTER CABLE & HOUSING: SP
COCKPIT
STEM: Forged, 31.8
HEADSET: TH, cartridge bearings
HANDLEBAR: Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE: Velo ergonomic, lock-on
SADDLE: Velo Comfort
SEATPOST: 31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP: Tern Collar
BELLS & WHISTLES
BELL: Aluminum

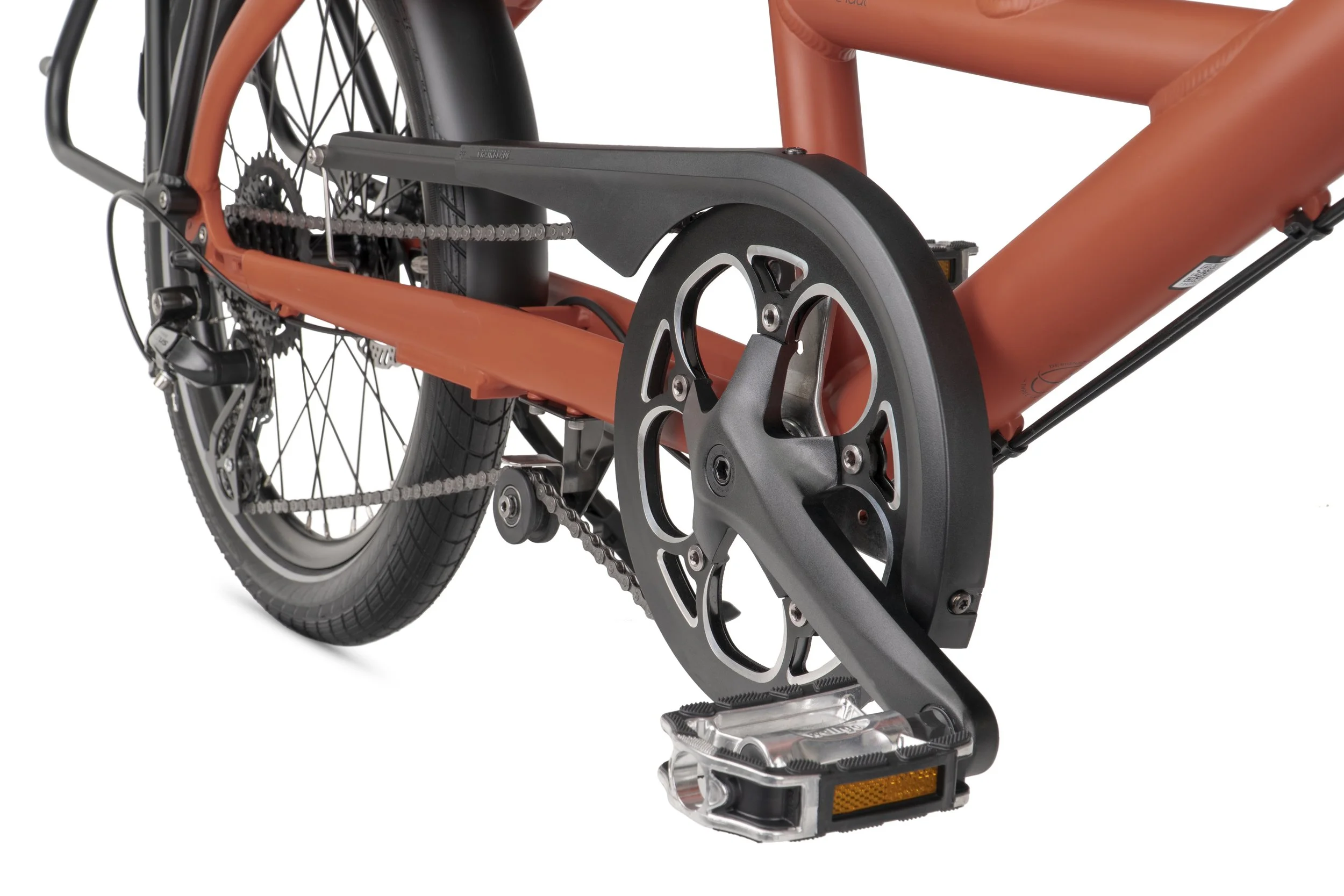

CHAINGUARD: SKS Chainblade
KICKSTAND: Pletscher design, rear mount
LUGGAGE SOCKET: Combo Mount
FENDERS: SplashGuard, stainless hardware

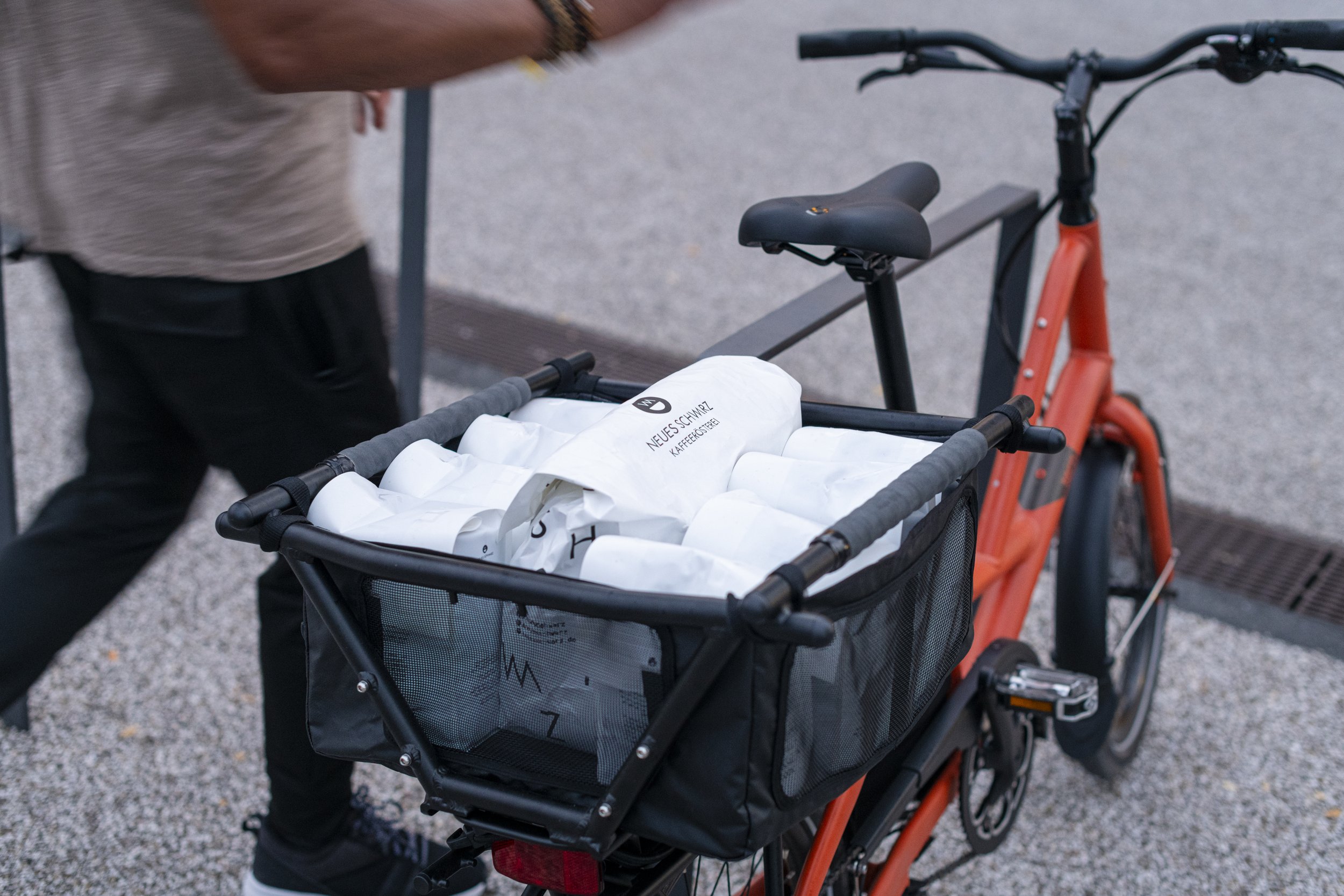

RACK(S): Atlas Q Rack, 6 point mounting, Vertical Parking, 50 kg capacity
