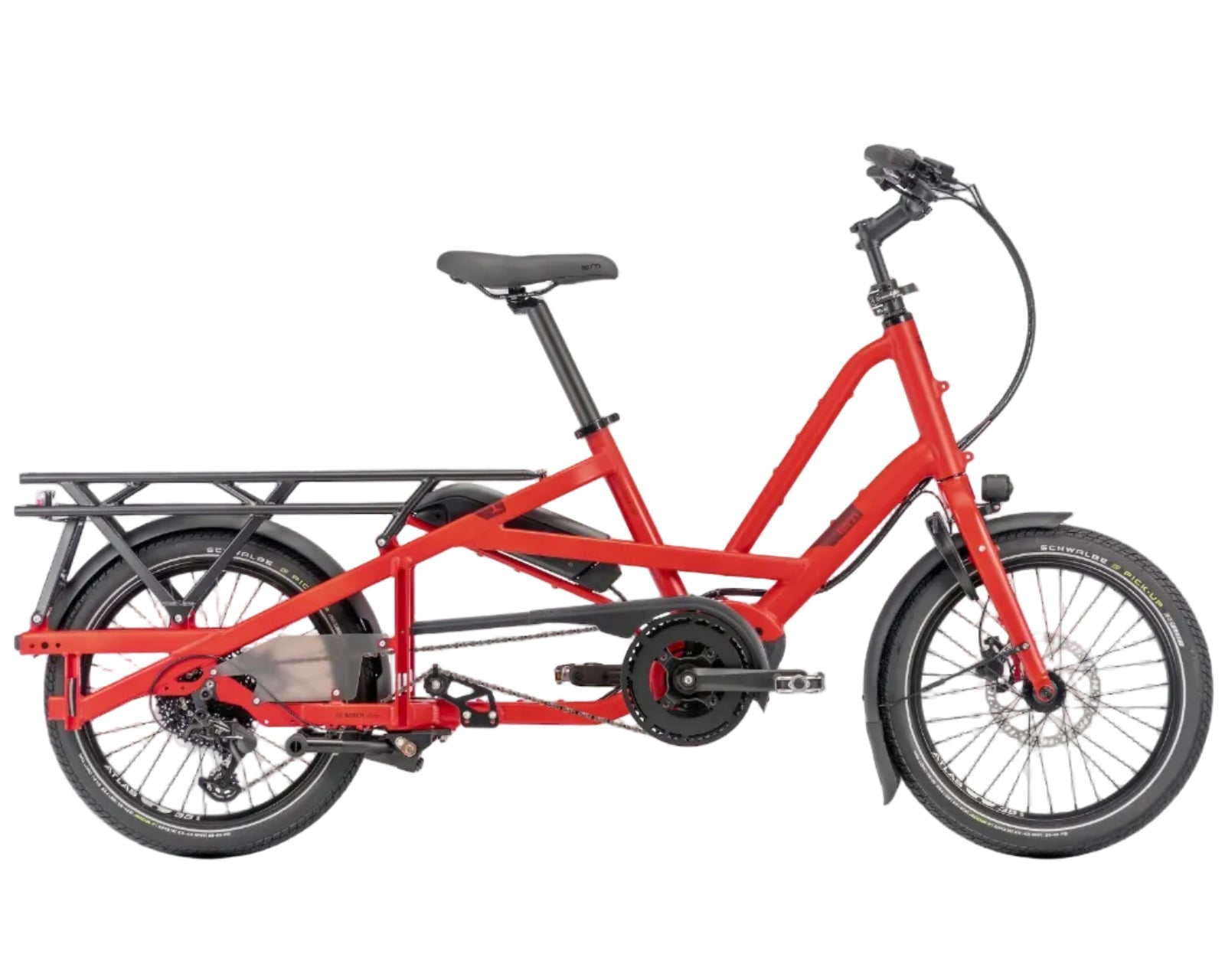

Red cargo bike with black components on a white background
1/17

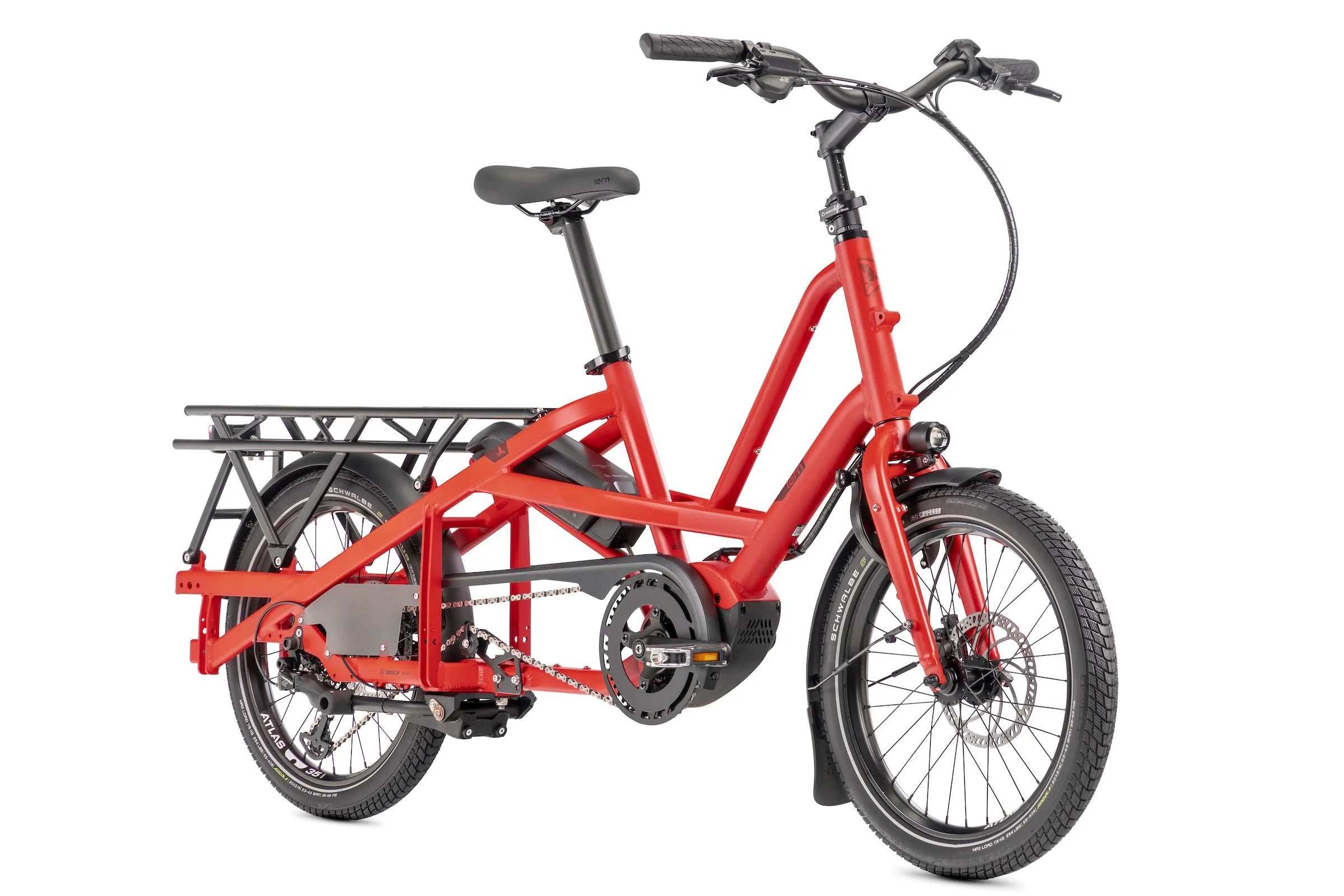

Tern Quick Haul Long D9 in Traffic Red

Tern Quick Haul Long D9 in Traffic Red
£3,500.00

Main specification

  • Derailleur Tektro Tektro Custom for Tern
  • Gears 9
  • Drivetrain type Chain
  • Brakes Tektro Hydraulic Disc Brake, Hydraulic disc brake
  • Fork/Shock model Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
  • Wheel size 20"
  • Weight (kg) 29.3

Drive system

  • Drive unit Bosch Cargo Line (BDU450CX)
  • Battery Bosch PowerPack 400
  • Battery capacity (Wh) 400
  • Display Purion (BES2)
Frame Size
Color

The Tern Quick Haul Long D9 - A practical e-bike for school runs and more.

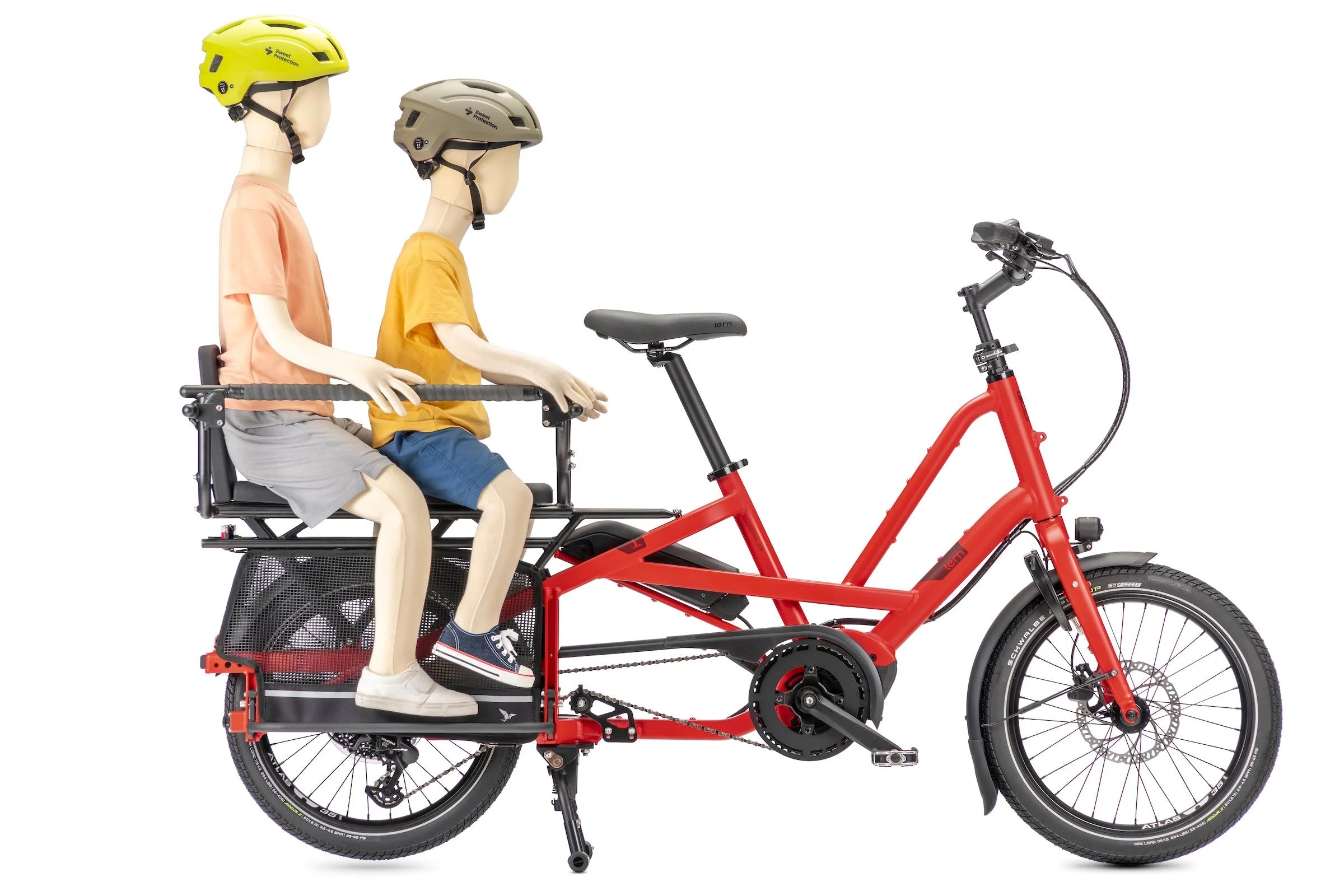

The Tern Quick Haul Long D9 is a practical electric cargo bike designed for everyday family life. Compact enough for city riding but strong enough to carry up to two children or heavier loads, it’s a great alternative to the car for daily trips.

The powerful Bosch motor makes hills and stop-start riding feel easy, while the stable frame and Atlas kickstand keep everything secure when loading. With simple gearing and quick, tool-free adjustments, it’s easy to share between riders and is built to fit into busy routines.

School runs, sorted.
Man riding a red electric bike with two children in a park
Family with a red electric bike at a playground

Proven Tough & Dependable

The Tern Quick Haul Long D9 is designed to handle heavy loads safely and reliably. With a 190 kg (419 lb) weight rating, its frame and fork have been tested to meet the DIN 79010 standard, a key safety benchmark for cargo bikes. This thorough testing ensures the Quick Haul Long D9 can stand up to the demands of daily use, giving you confidence in its strength and stability on the road.
Man with child in a bike trailer outdoors near greenery and a stone wall.

Fit-for-Purpose Components

Designing the Tern Quick Haul Long D9 for heavy loads means more than just reinforcing the frame and fork. Essential components like the handlebar, stem, seatpost, cranks, and wheels also need to withstand the stresses of the road. Only parts that have passed thorough third-party lab testing are used, ensuring that every piece of the Quick Haul Long D9 is built to handle valuable cargo with reliability and strength.
Two people riding a red cargo electric bike on a city street with classical architecture in the background.

Quick Haul Long is UL Tested & Certified

The Tern Quick Haul Long D9’s entire Bosch® e-bike system—including motor, battery, charger, and display—meets the UL 2849 certification, the top industry standard for fire and electrical safety. Each component undergoes rigorous testing for electrical safety, and the system as a whole is also tested to ensure maximum reliability, offering peace of mind with every ride.
Two children sitting on a kitchen floor with a bicycle mounted on a stand in the background.

Quick Haul Long is Easy to Store

Parking and storing your bike indoors is the best reassurance against prowling thieves and unpredictable weather. Tern Quick Haul Long parks and rolls vertically to fit in tight spaces (including elevators), so you can simply bring it indoors whether at home or work. When parked upright, it takes up about as much space as a potted plant, leaving you more room for what’s precious to you.

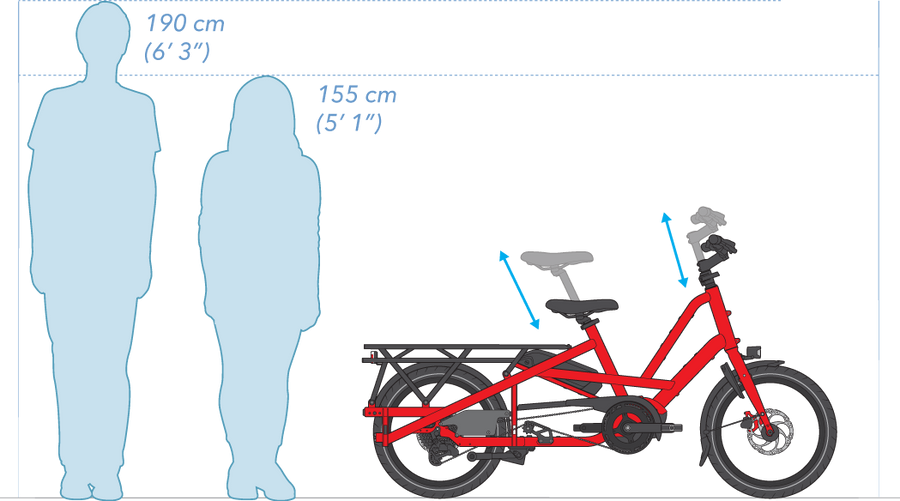

Diagram showing a red bicycle with dimensions labeled for two human figures.

Share Your Ride

Sharing a car with your spouse or partner makes sense, and it shouldn’t be any different for an e-bike. Quick Haul Long is made for easy sharing—with the flip of two levers, the stem and seatpost adjust in seconds without tools to fit riders 155 - 185 cm (5'1" - 6'1") tall, while a low step-through frame facilitates easy mounting and dismounting.

Detailed information

Speeds 1 x 9
Weight 29.3 kg (64.6 lb)
Gear Inches 23" - 89" (1.87 - 7.13 m)
Frame Sizes One size
Bike Size 187 × 70 × 102.5 cm (73.6 × 27.6 × 40.4 in)
Wheelbase 130 cm (51.2 in)
Standover Height 48 cm (18.9 in)
Distance: Seatpost To Handlebar 60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle To Pedal 76 - 99 cm (29.9 - 39 in)
Suggested Rider Height 155 - 190 cm (61 - 74.8 in)
Max Gross Vehicle Weight 190 kg (418.9 lb)
Max Rider Weight 120 kg (264.6 lb)
Frame Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
Fork Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)

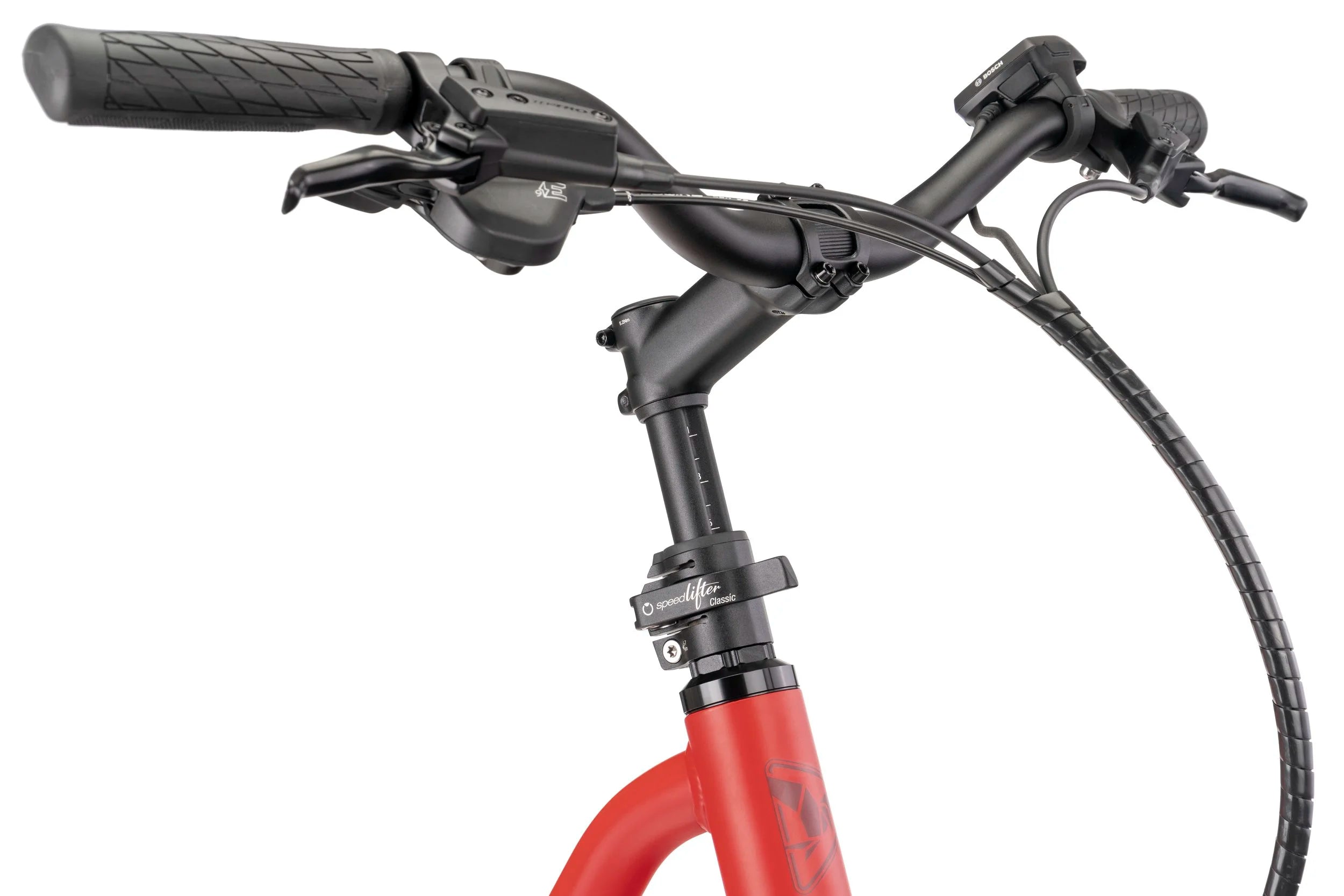

Stem Speedlifter, adjustable, 3D forged stem, 31.8
Headset TH, cartridge bearings
Handlebar Low riser ergo, 31.8, 6061-AL
Grips/Bar Tape Velo ergonomic, lock-on
Saddle Velo Comfort
Seatpost 34.9 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp Tern Collar

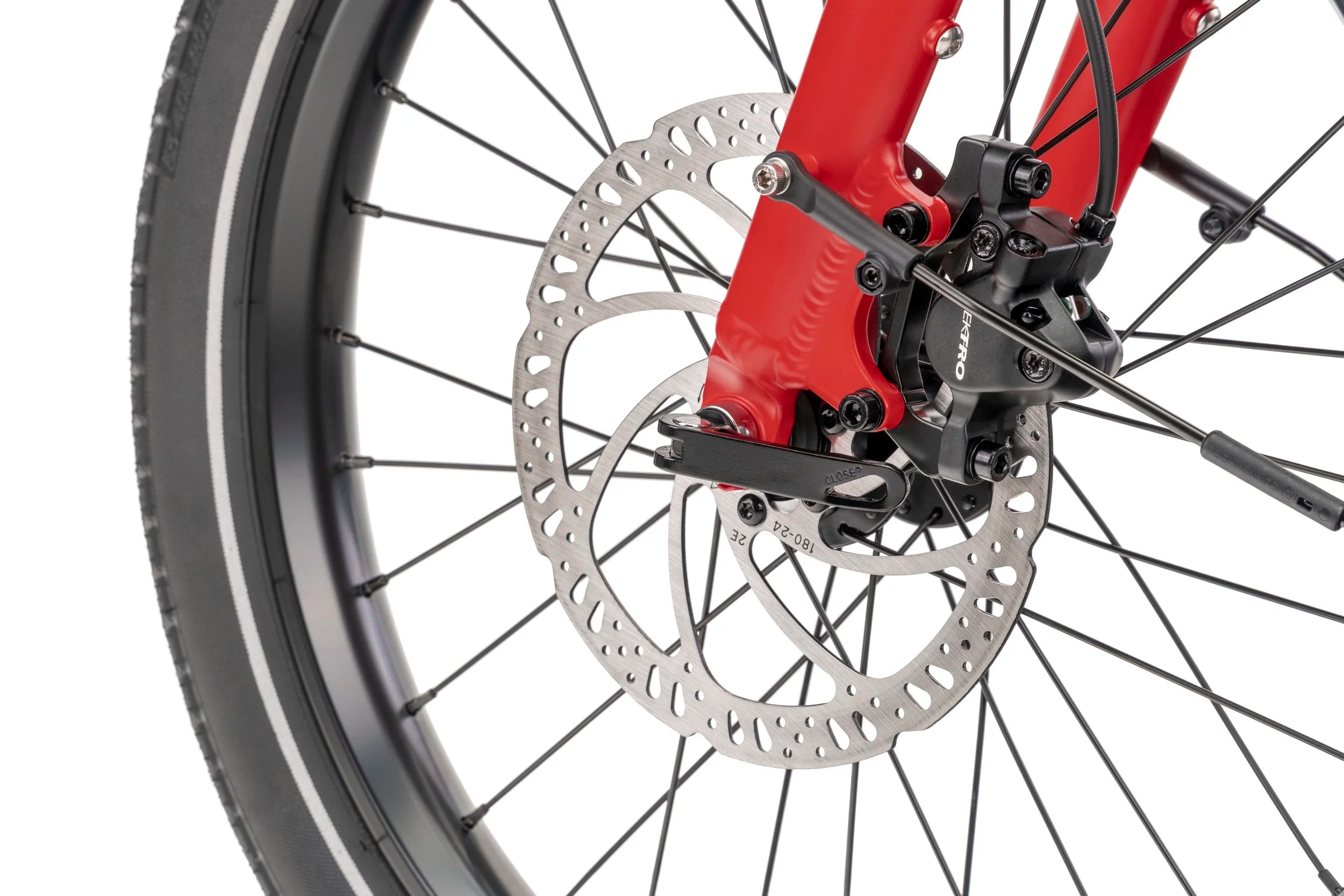

Front Brake Tektro hydraulic disc
Rear Brake Tektro hydraulic disc
Brake Levers Tektro hydraulic disc
Front Hub Disc, aluminum
Rear Hub 9 spd, disc, aluminum, Boost
Spokes & Nipples Stainless steel
Rims Tern Atlas H, cargo

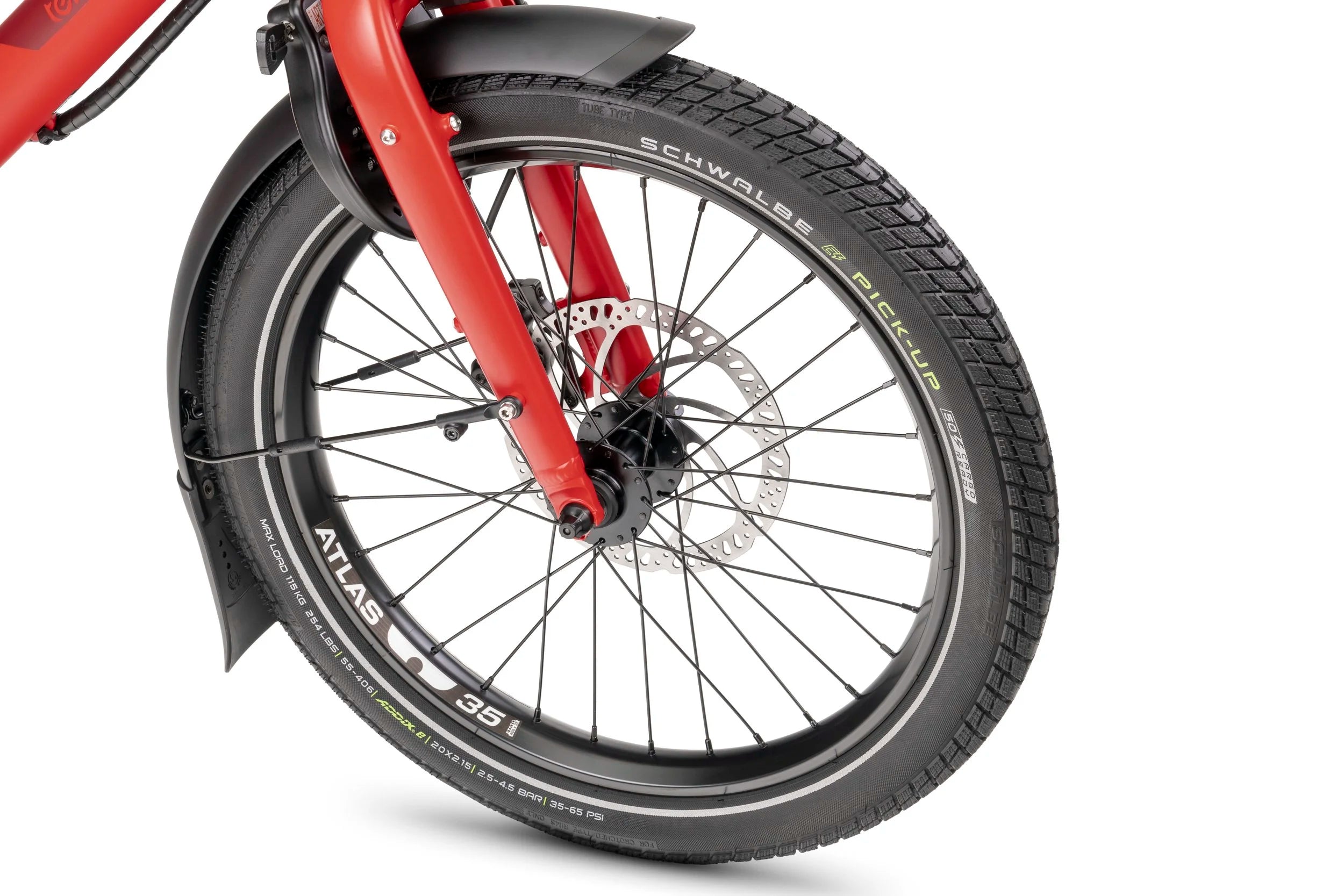

Tires Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
Shifter(S) Tektro, 1 x 9 spd, trigger
Rear Derailleur Tektro custom for Tern, 1 x 9 spd
Crankset Tern custom, forged 6061-AL crankarm, anti-drop chainring
Cassette/Freewheel Tektro 11-42T, 9 spd
Bottom Bracket Motor integrated
Chain KMC for eBike, 9 spd
Pedals Urban with non-slip surface
Shifter Cable & Housing SP

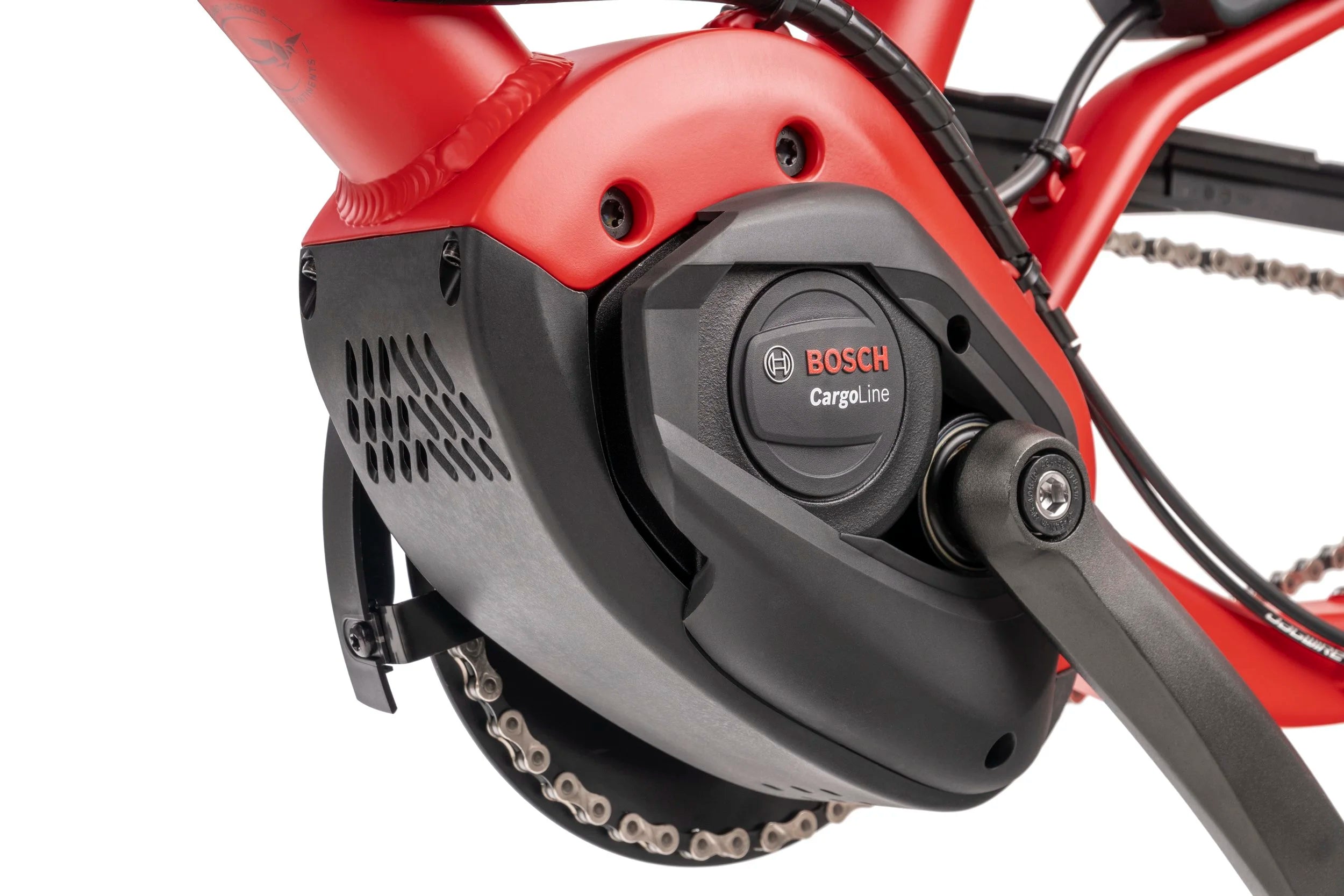

Motor Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery Bosch PowerPack 400

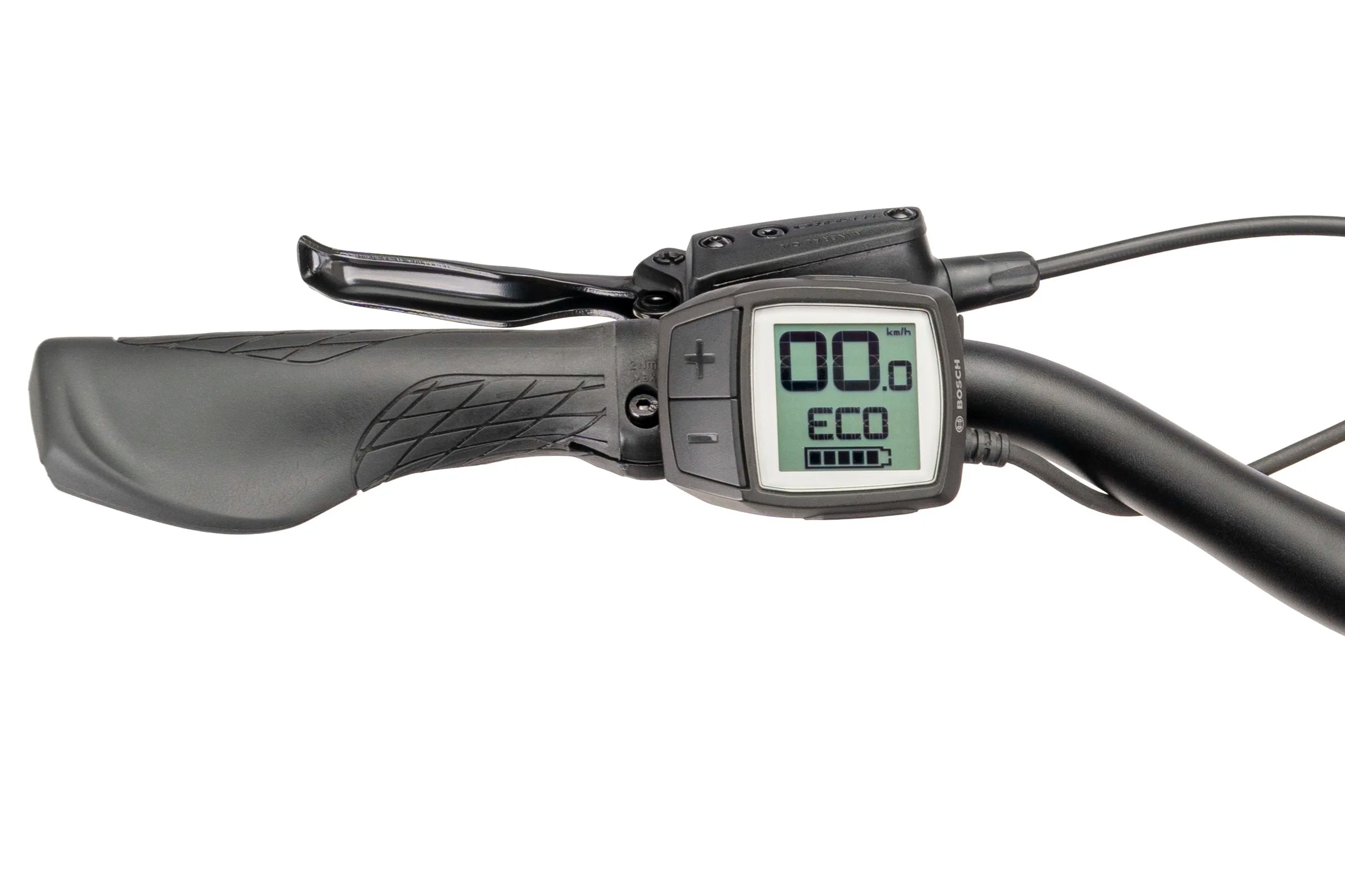

Display Bosch Purion, 4 mode selectable, walk assist
Range 400 Wh: 42-85 km (26-53 mi)
Charger 220V, 4A (EU); 100-240V, 4A (US)
Bell Aluminum
Chainguard SKS Chainblade

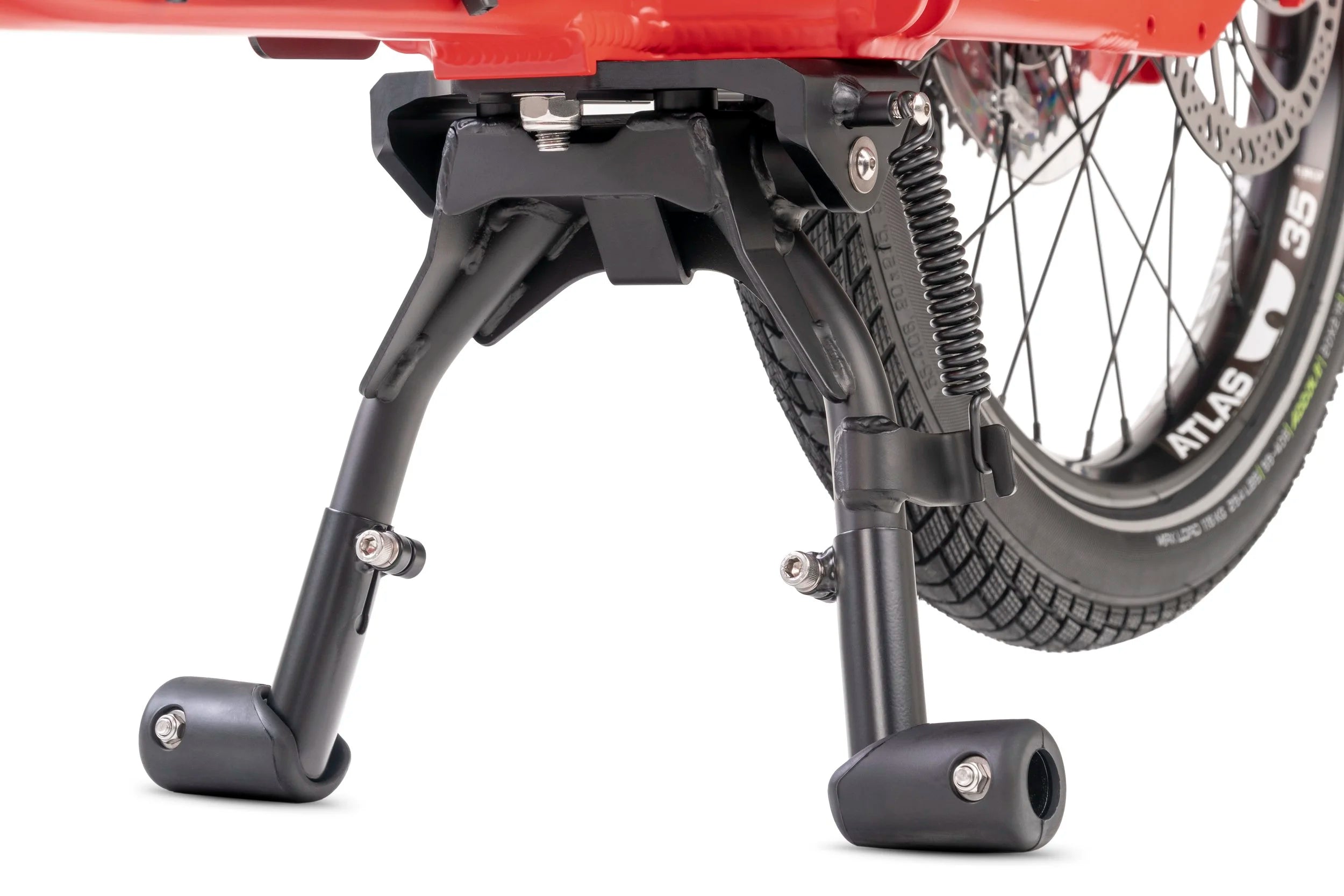

Kickstand Atlas Kickstand, for cargo

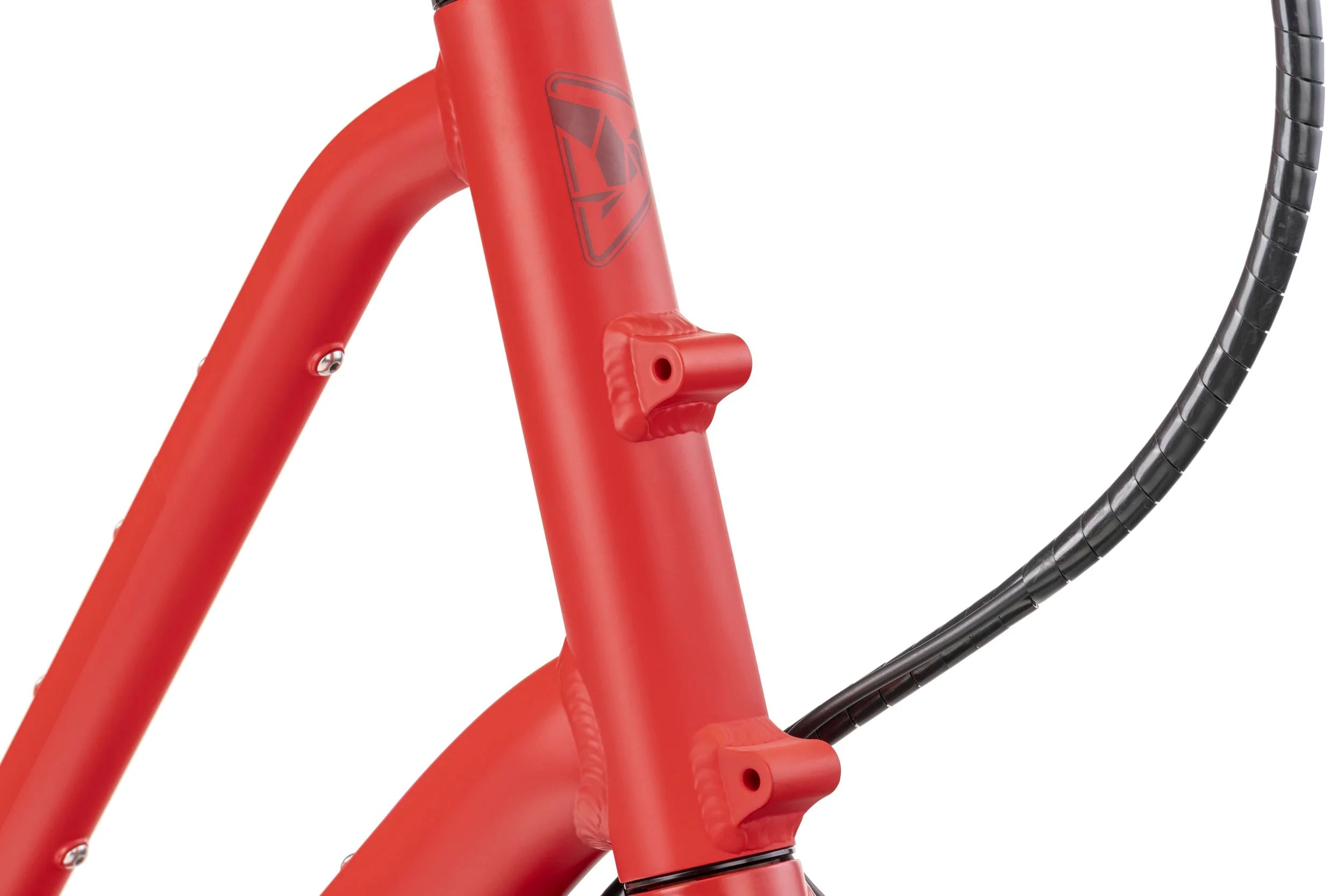

Luggage Socket Combo Mount
Front Light 90 lux, StVZO approved
Rear Light Herrmans
Fenders SplashGuard, stainless hardware

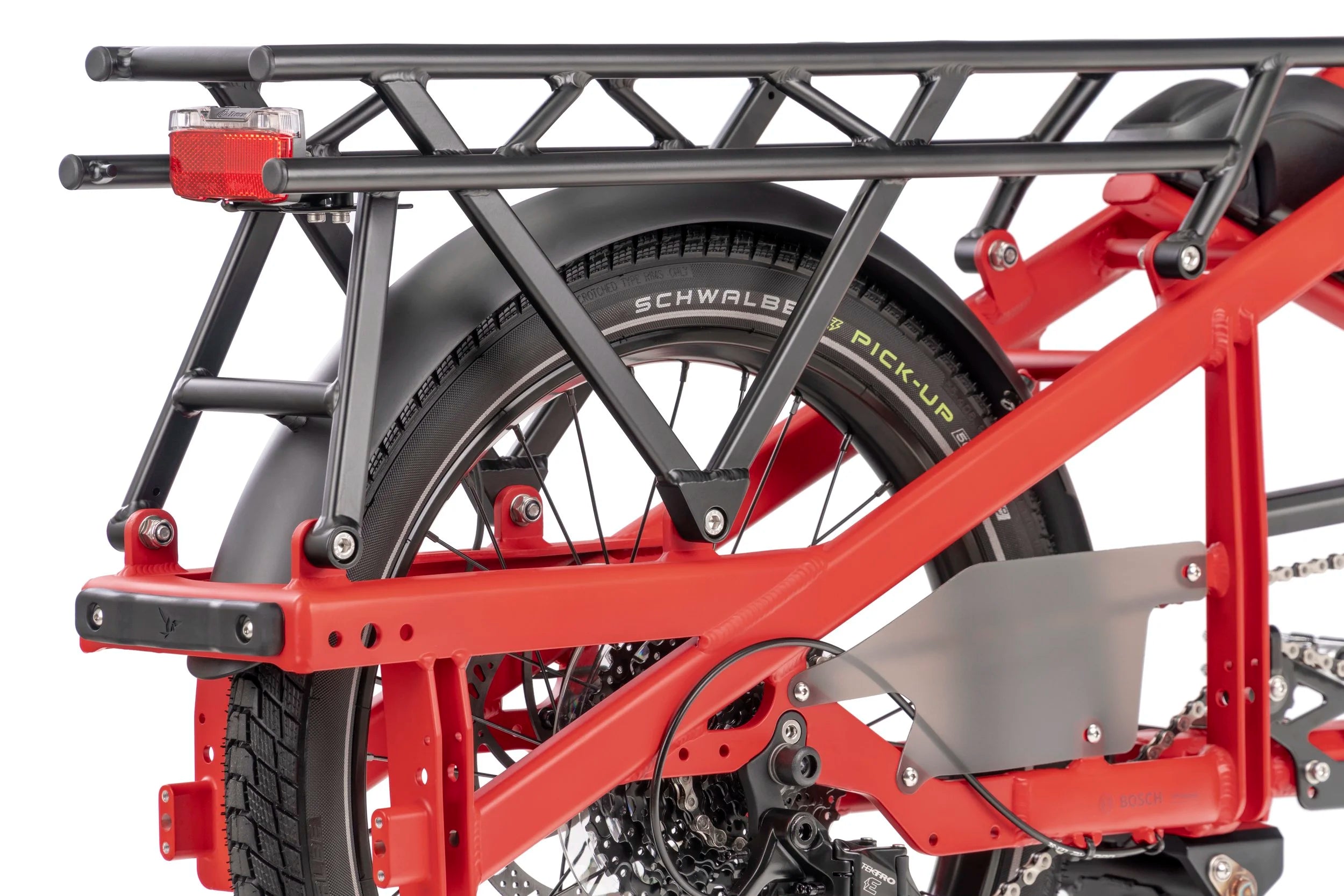

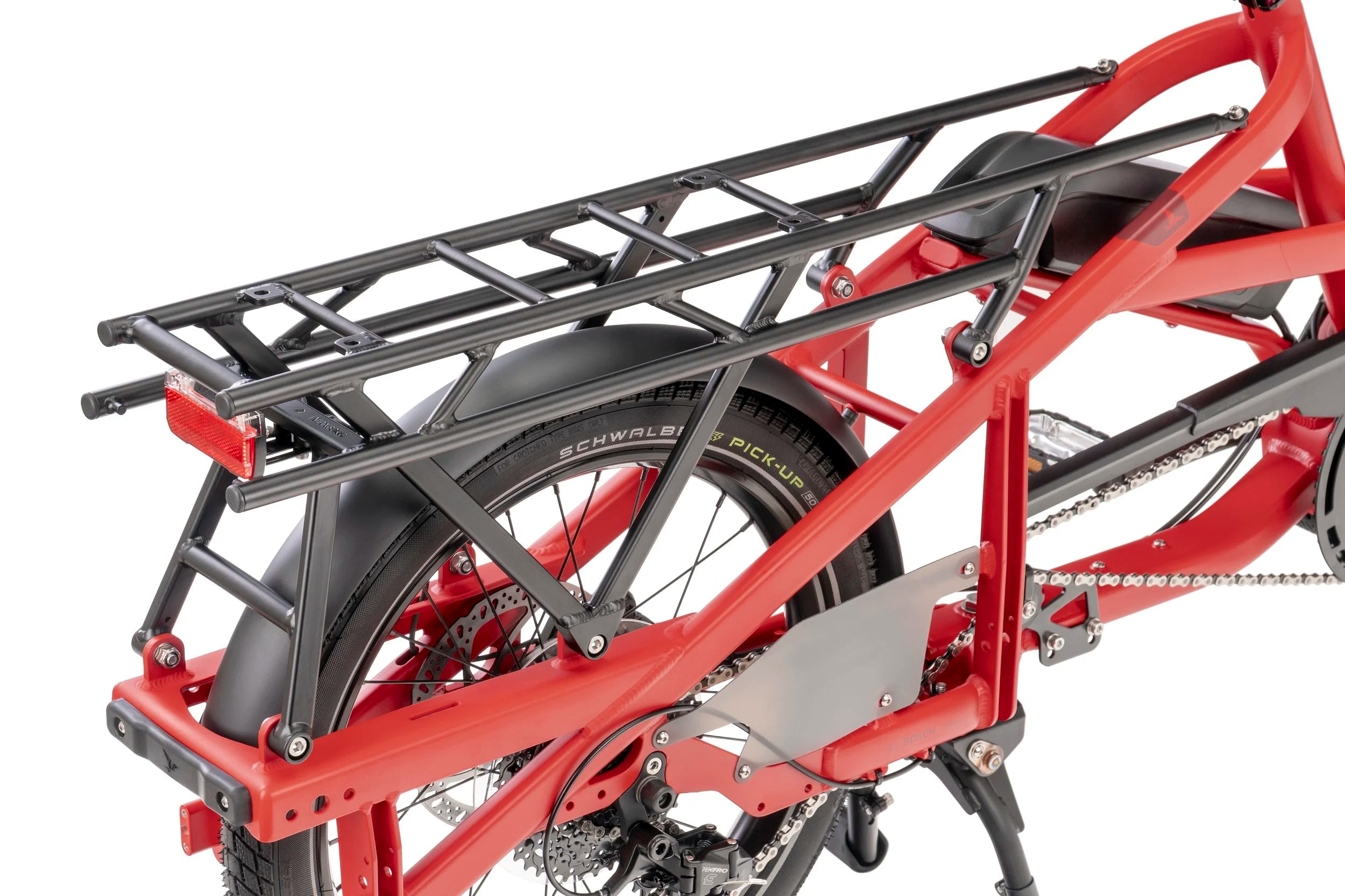

Rack(S) Atlas L, 90 kg (198 lb) capacity

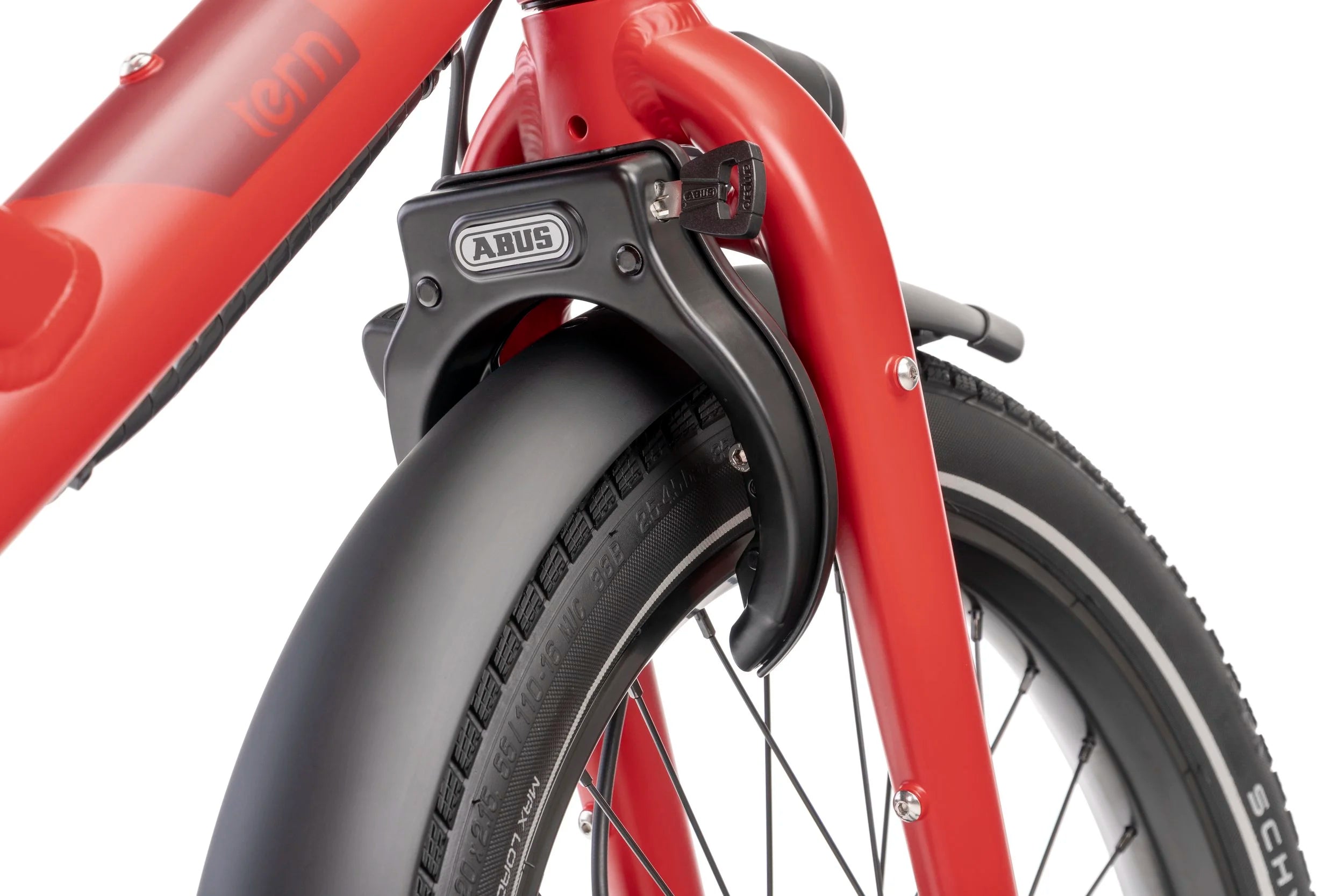

Frame Lock ABUS or AXA, keyed-alike with Bosch battery
