The Tern Quick Haul P9 is a versatile compact cargo bike designed for riders who want everyday practicality without the bulk of a full-size cargo bicycle. Built around a strong, EFBE-tested frame and fork rated for a 150 kg maximum gross vehicle weight, it delivers proven safety and durability for daily transport. The sturdy rear rack carries up to 50 kg, with the option to add 20 kg up front, making it ideal for groceries, gear, or family duties.
Skip to product information

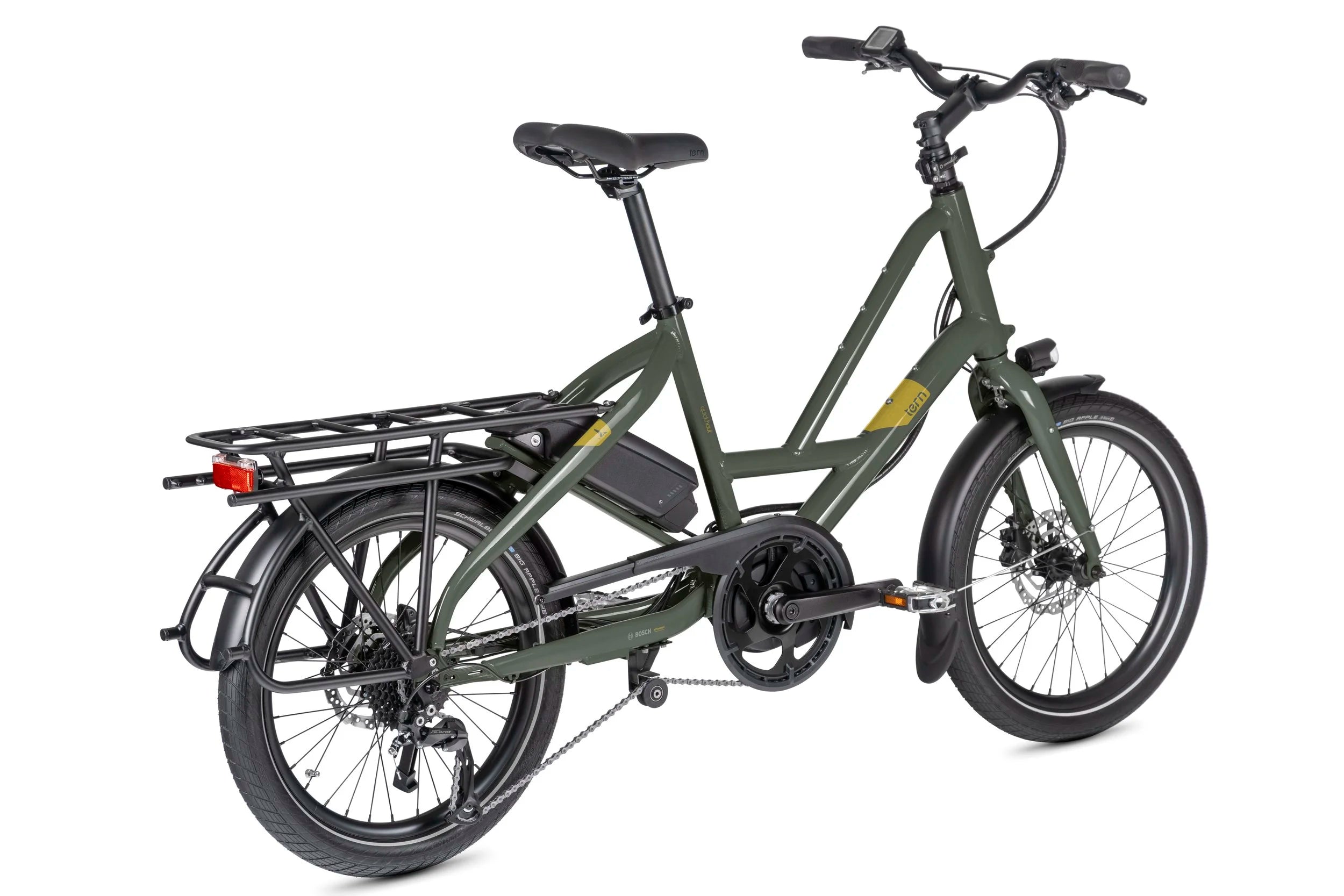

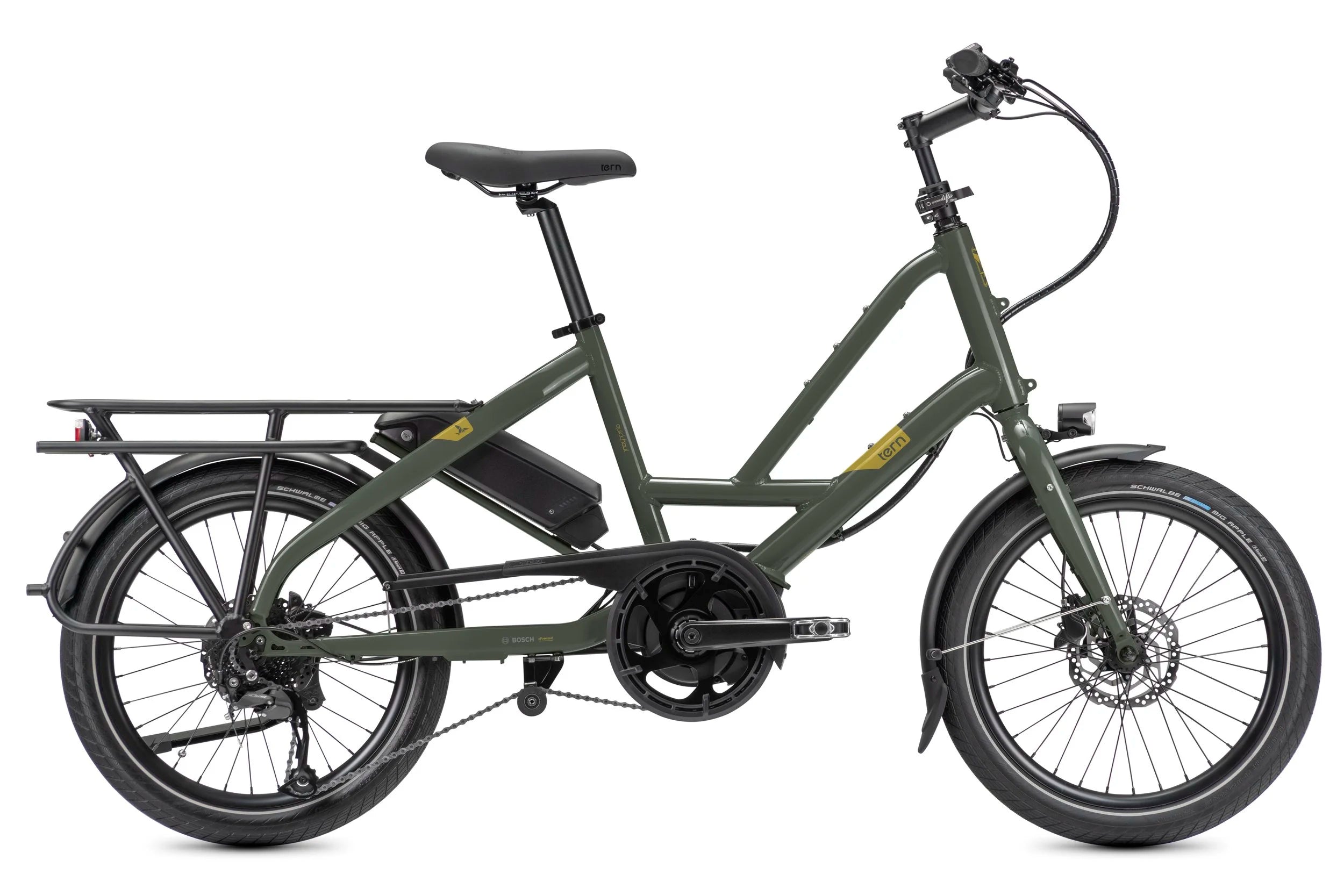

Tern Quick Haul P9 in Olive
£3,100.00
Main specification
- Derailleur Shimano Alivio Shadow 9
- Gears 9
- Drivetrain type Chain
- Brakes Shimano MT-200, Hydraulic disc brake
- Fork/Shock model Cargo, steel, EFBE approved: 150 kg
- Wheel size 20"
- Weight (kg) 22.9
Drive system

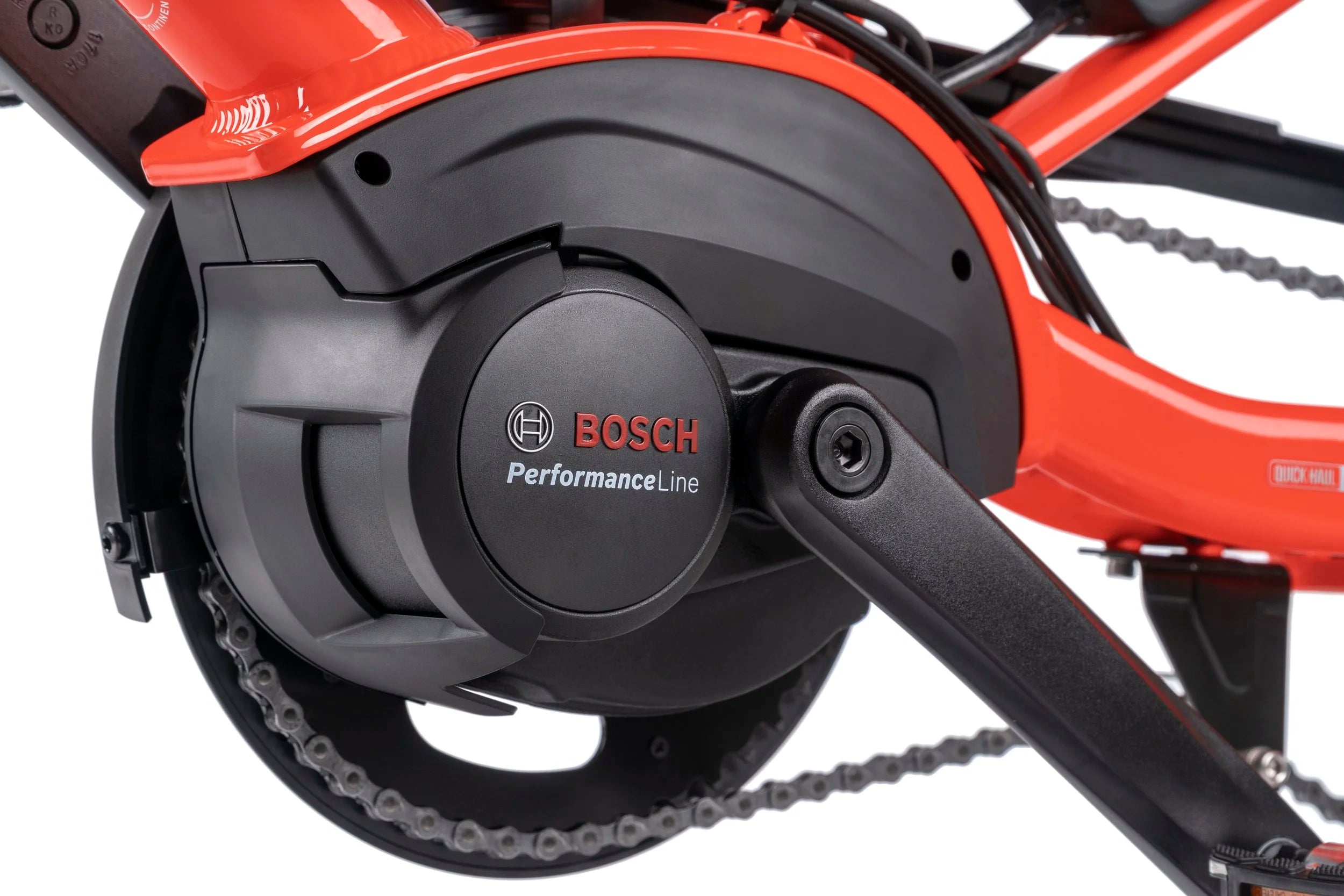

- Drive unit Bosch Performance Line (BDU365)
- Battery Bosch PowerPack 400
- Battery capacity (Wh) 400
- Display Purion (BES2)
Affordable electric cargo bike
Detailed information
| Category | General Info |
|---|---|
| Speeds | 1 x 9 |
| Weight | 22.9 kg (50.5 lb) |
| Gear Inches | 31" - 95" (2.45 - 7.57 m) |
| Frame Sizes | One size |
| Distance: Seatpost To Handlebar | 60 - 64 cm (23.6 - 25.2 in) |
| Distance: Saddle To Pedal | 68 - 110 cm (26.8 - 43.3 in) |
| Suggested Rider Height | 160 - 195 cm (63 - 76.8 in) |
| Max Gross Vehicle Weight | 150 kg (330.7 lb) |
| Max Rider Weight | 120 kg (264.6 lb) |
| Category | Frame |
| Frame | Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg |
| Fork | Cargo, steel, EFBE approved: 150 kg |
| Category | Cockpit |
| Stem | Speedlifter, 150 mm extension, 3D forged stem, 31.8 |
| Headset | TH, cartridge bearings |
| Handlebar | Low riser, 31.8, 6061-AL |
| Grips/Bar Tape | Velo ergonomic, lock-on |
| Saddle | Velo Comfort |
| Seatpost | 31.6 mm, 6061-AL, micro-adjust clamp |
| Seatpost Clamp | Tern Collar |
| Category | Brakes |
| Front Brake | Shimano, hydraulic disc |
| Rear Brake | Shimano, hydraulic disc |
| Brake Levers | Shimano, hydraulic disc |
| Brake Cable & Housing | Shimano, hydraulic disc |
| Category | Wheels |
| Front Hub | Shimano disc |
| Rear Hub | Shimano disc |
| Spokes & Nipples | Stainless steel |
| Rims | Kinetix Comp, for disc |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Category | Transmission |
| Shifter(S) | Shimano Alivio, 1 x 9 spd, trigger |
| Rear Derailleur | Shimano Alivio Shadow |
| Crankset | Tern custom, forged 6061-AL crankarm |
| Cassette/Freewheel | Shimano 11-34T, 9 spd |
| Bottom Bracket | Motor integrated |
| Chain | KMC for eBike, 9 spd |
| Pedals | Urban with non-slip surface |
| Shifter Cable & Housing | SP |
| Category | E-System |
| Motor | Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch PowerPack 400 |
| Display | Bosch Purion |
| Range | 400 Wh: 53 - 105 km (32.9 - 65.2 mi) |
| Charger | Compact Charger, 100-240V, 2A |
| Category | Bells & Whistles |
| Bell | Aluminum |
| Chainguard | SKS Chainblade |
| Kickstand | Pletscher design, rear mount |
| Luggage Socket | Combo Mount |
| Front Light | Herrmans, 120 lumens |
| Rear Light | Herrmans |
| Fenders | Chromeplastic, stainless hardware |
| Rack(S) | Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity |
