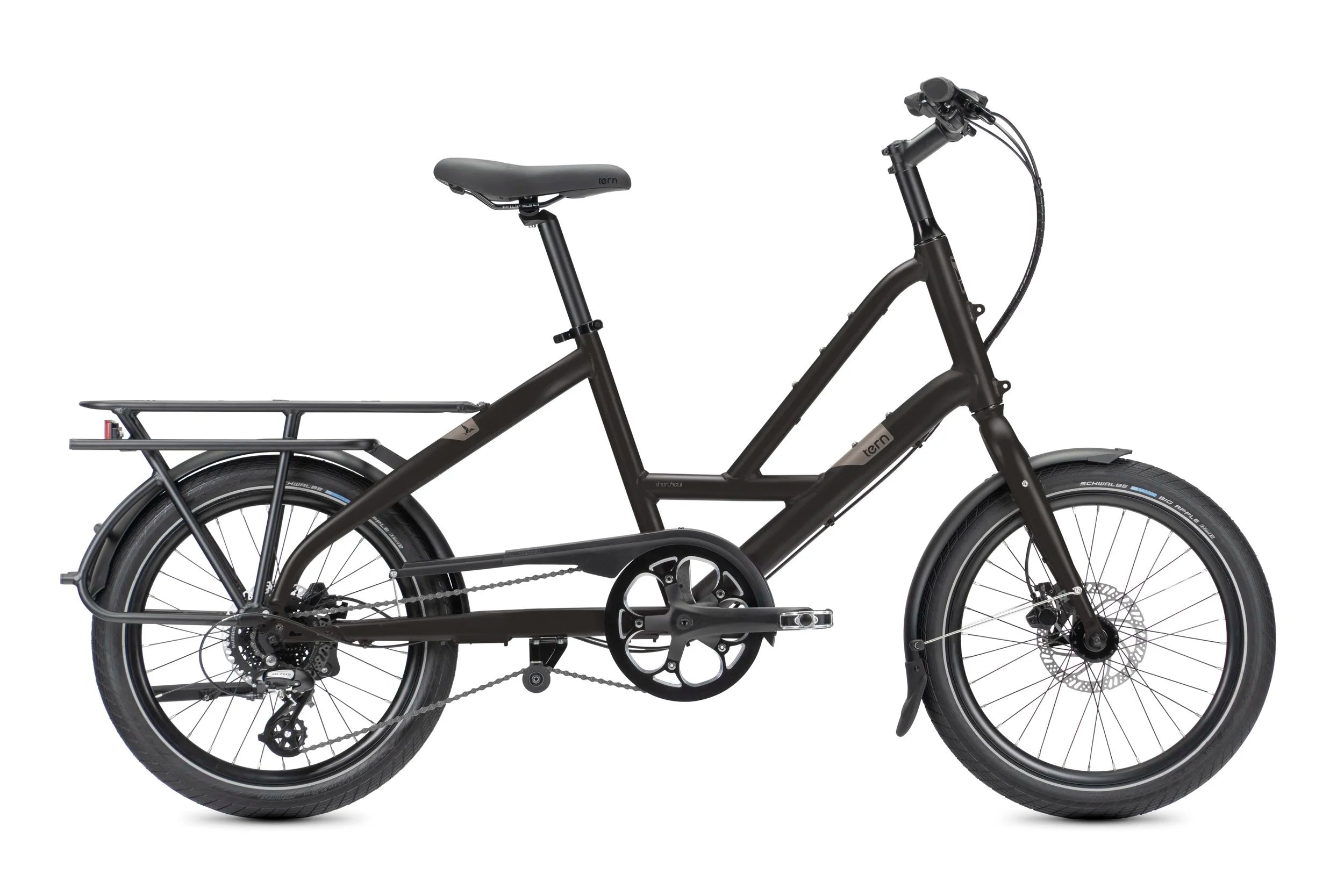

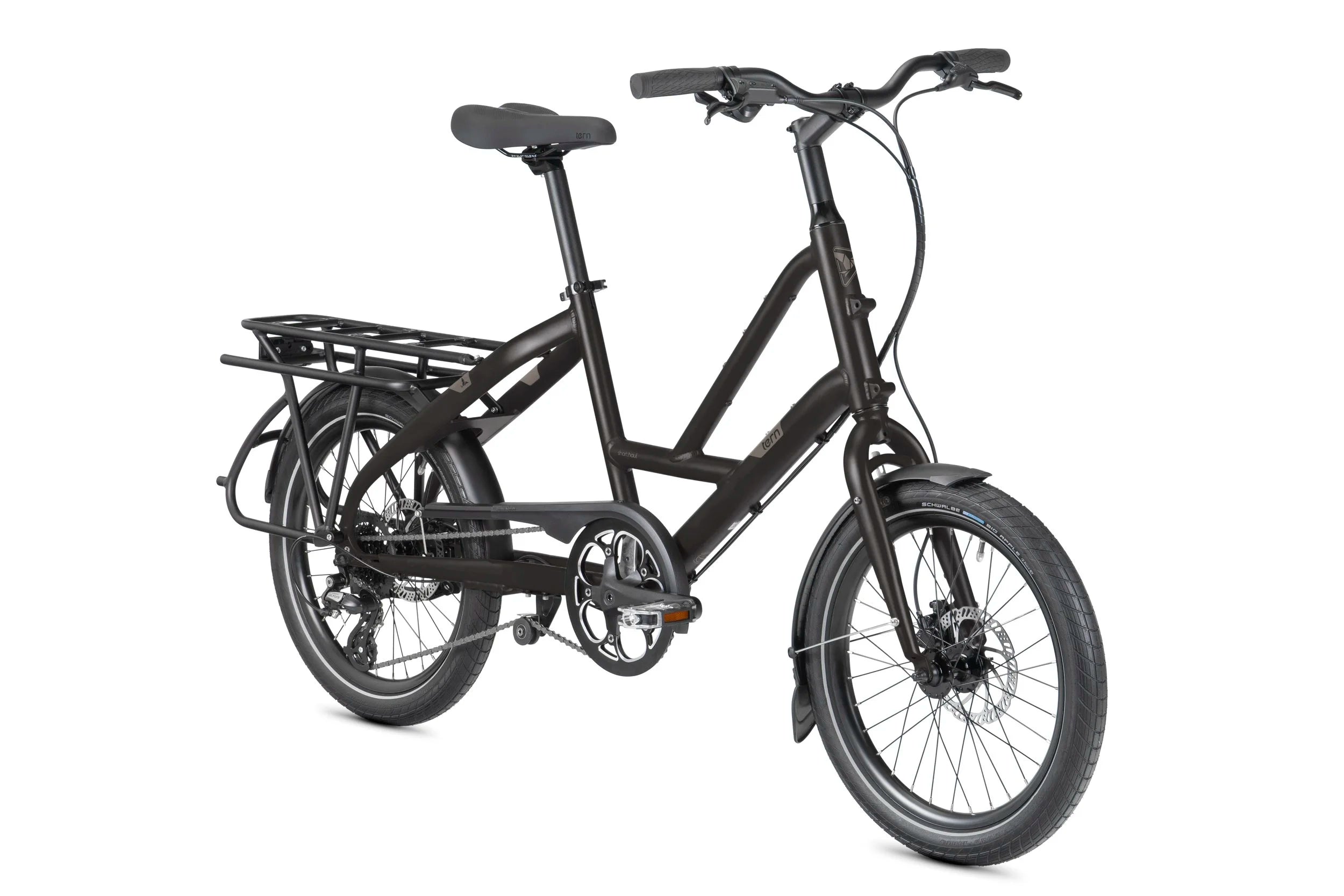

Tern Short Haul D8 in Black

£1,100.00

Main specification

Derailleur Shimano Altus 8
Gears 8
Drivetrain type Chain
Brakes Shimano Hydraulic disc, Hydraulic disc brake
Fork/Shock model Steel, EFBE approved: 140 kg
Wheel size 20"
Weight (kg) 16.1

Simply practical. The Short Haul is a compact cargo bike that makes it easy to get around town and get things done. Practical and uncomplicated, the Short Haul has everything the modern urban rider needs—nothing they don’t.

Compact and capable

Compact cargo bike that carries up to 50 kg on the rear rack, plus an additional 20 kg with optional front rack. Create your ideal setup with different accessory options to carry your kid, your stuff, or even your dog. Proven safe and reliable: frame and fork are EFBE-tested up to the 140 kg (308 lb) Maximum Gross Vehicle Weight. Fits riders of different heights from 147 - 190 cm (4’10” - 6’3”), weighing up to 120 kg (264 lb). Low standover height (49 cm or 19”) makes (dis)mounting and waiting at stops easier. 1x8-speed Shimano Altus derailleur with trigger shifter. Hydraulic disc brakes for great stopping power, even when carrying heavy loads

Detailed information

Category	General Info
Speeds	1 x 8
Weight	16.1 kg (35.5 lb)
Gear Inches	31" - 95" (2.45 - 7.57 m)
Frame Sizes	One size
Distance: Seatpost To Handlebar	60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle To Pedal	62 - 110 cm (24.4 - 43.3 in)
Suggested Rider Height	147 - 190 cm (57.9 - 74.8 in)
Max Gross Vehicle Weight	140 kg (308.6 lb)
Max Rider Weight	120 kg (264.6 lb)
Category	Frame

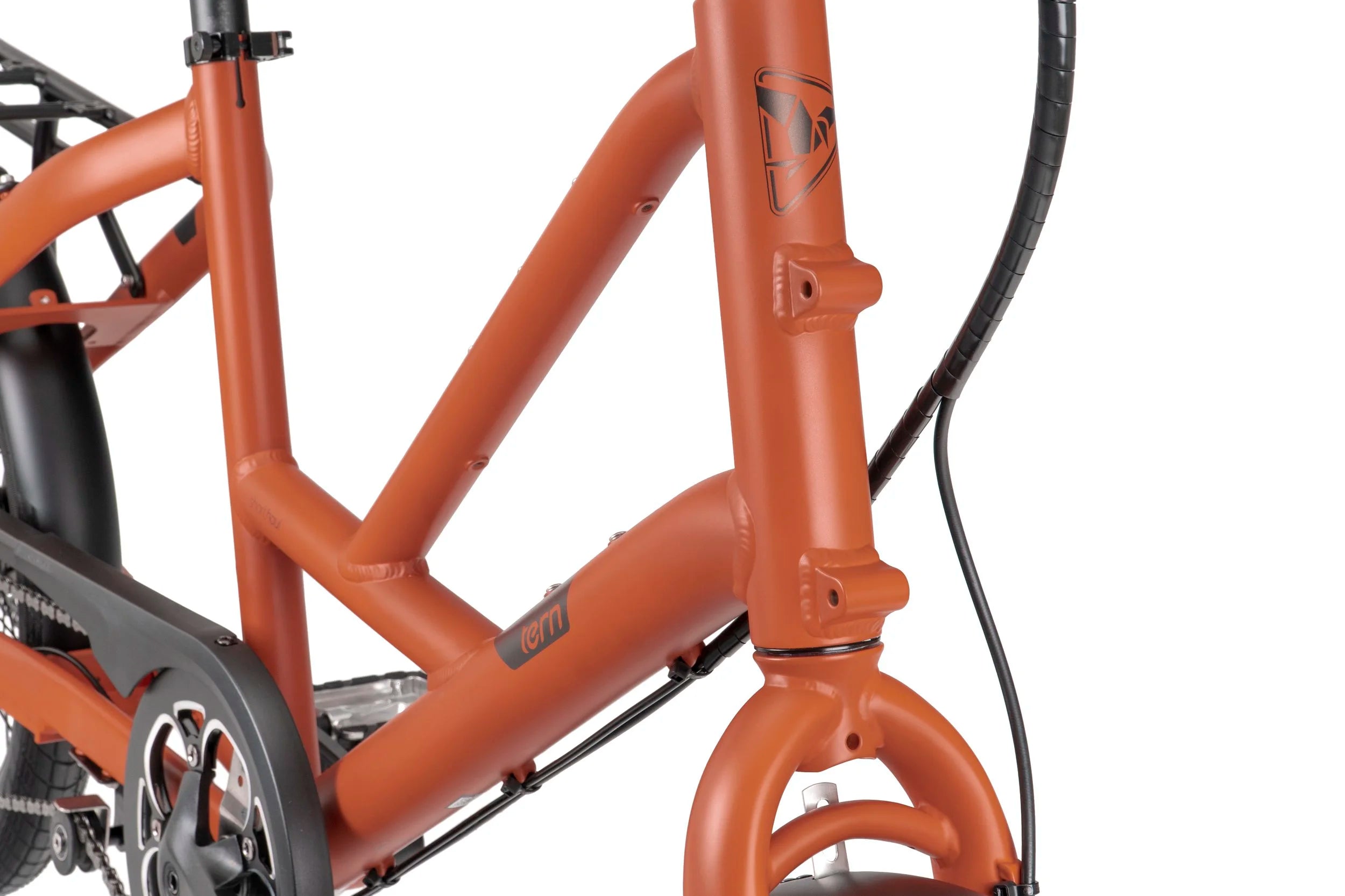

Frame	Tern Short Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 140 kg

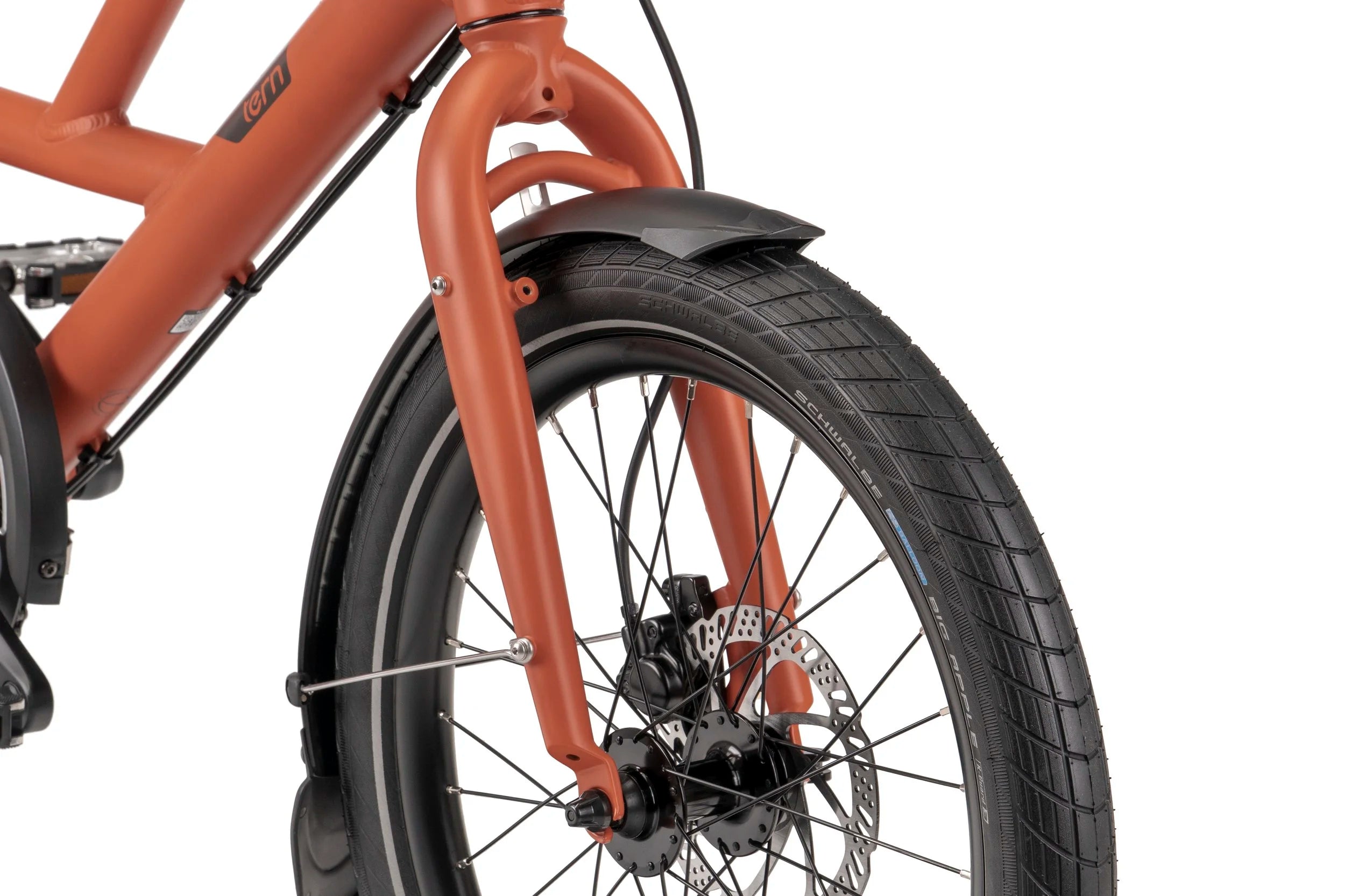

Fork	Steel, EFBE approved: 140 kg

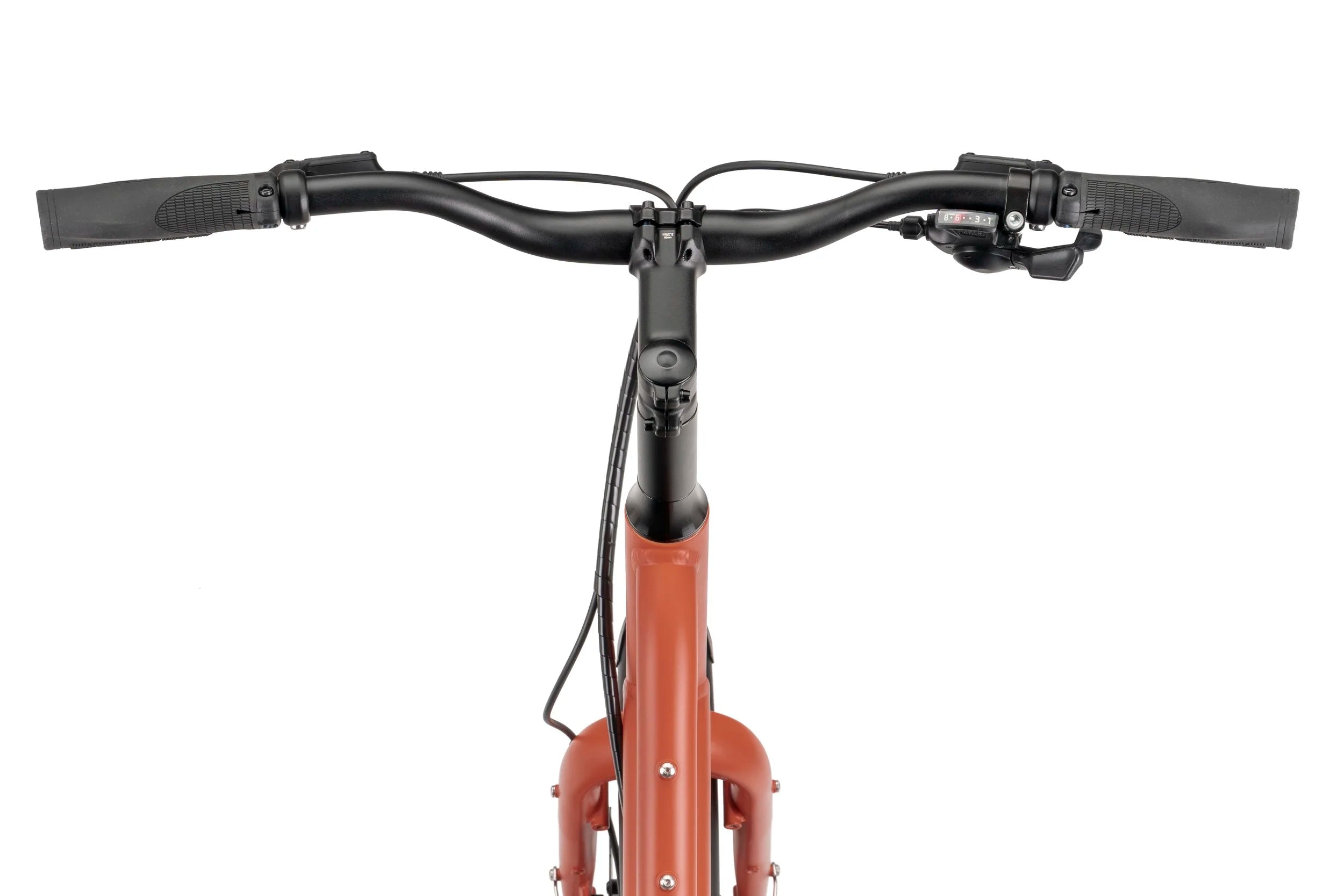

Category	Cockpit
Stem	Forged, 31.8
Headset	TH, cartridge bearings
Handlebar	Low riser, 31.8, 6061-AL
Grips/Bar Tape	Velo ergonomic, lock-on

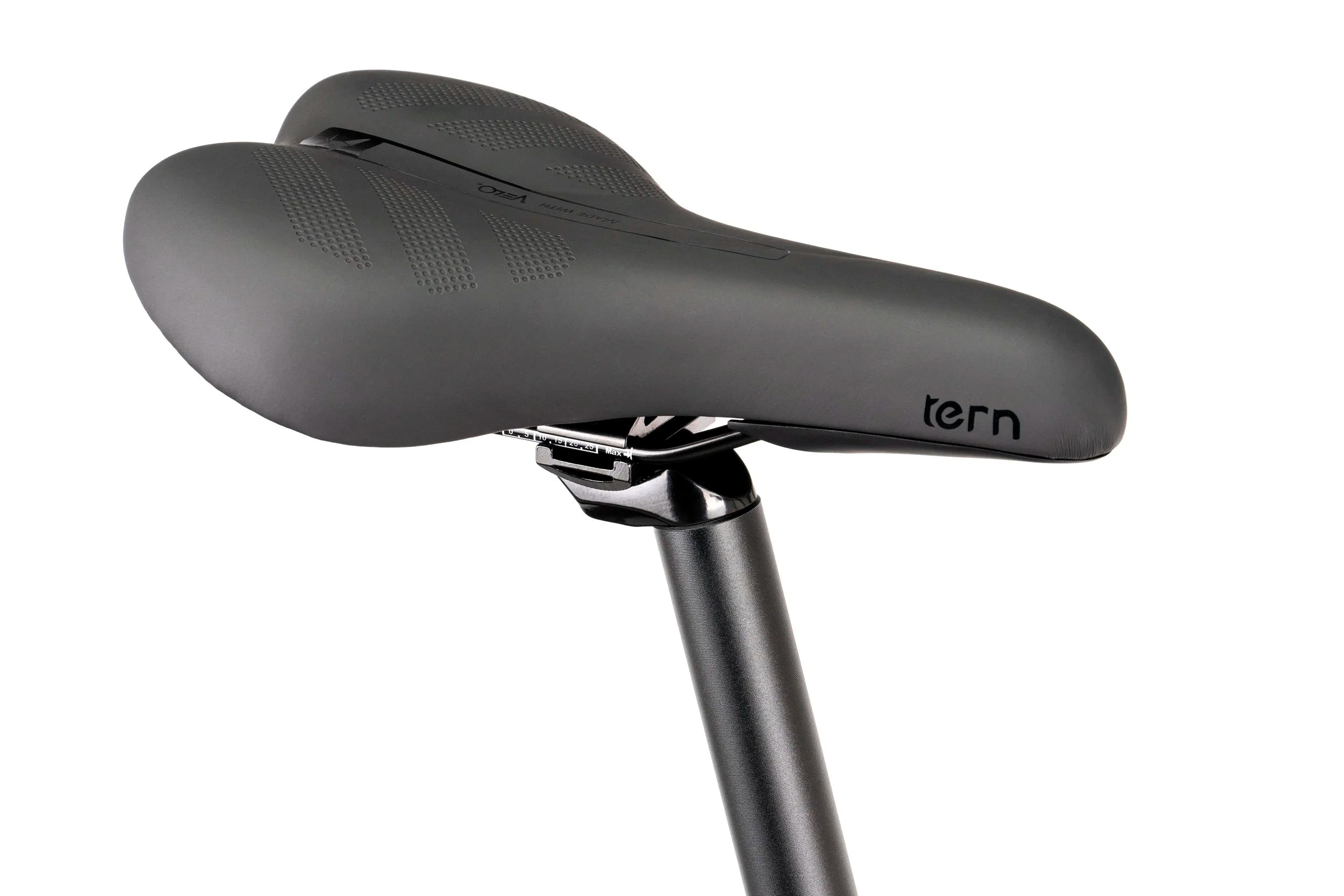

Saddle	Velo Comfort
Seatpost	31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp	Tern Collar
Category	Brakes
Front Brake	Hydraulic disc
Rear Brake	Hydraulic disc
Brake Levers	Hydraulic disc
Brake Cable & Housing	Hydraulic disc
Category	Wheels
Front Hub	Disc, aluminum
Rear Hub	8 spd, disc, aluminum
Spokes & Nipples	Stainless steel
Rims	Doublewall, for disc

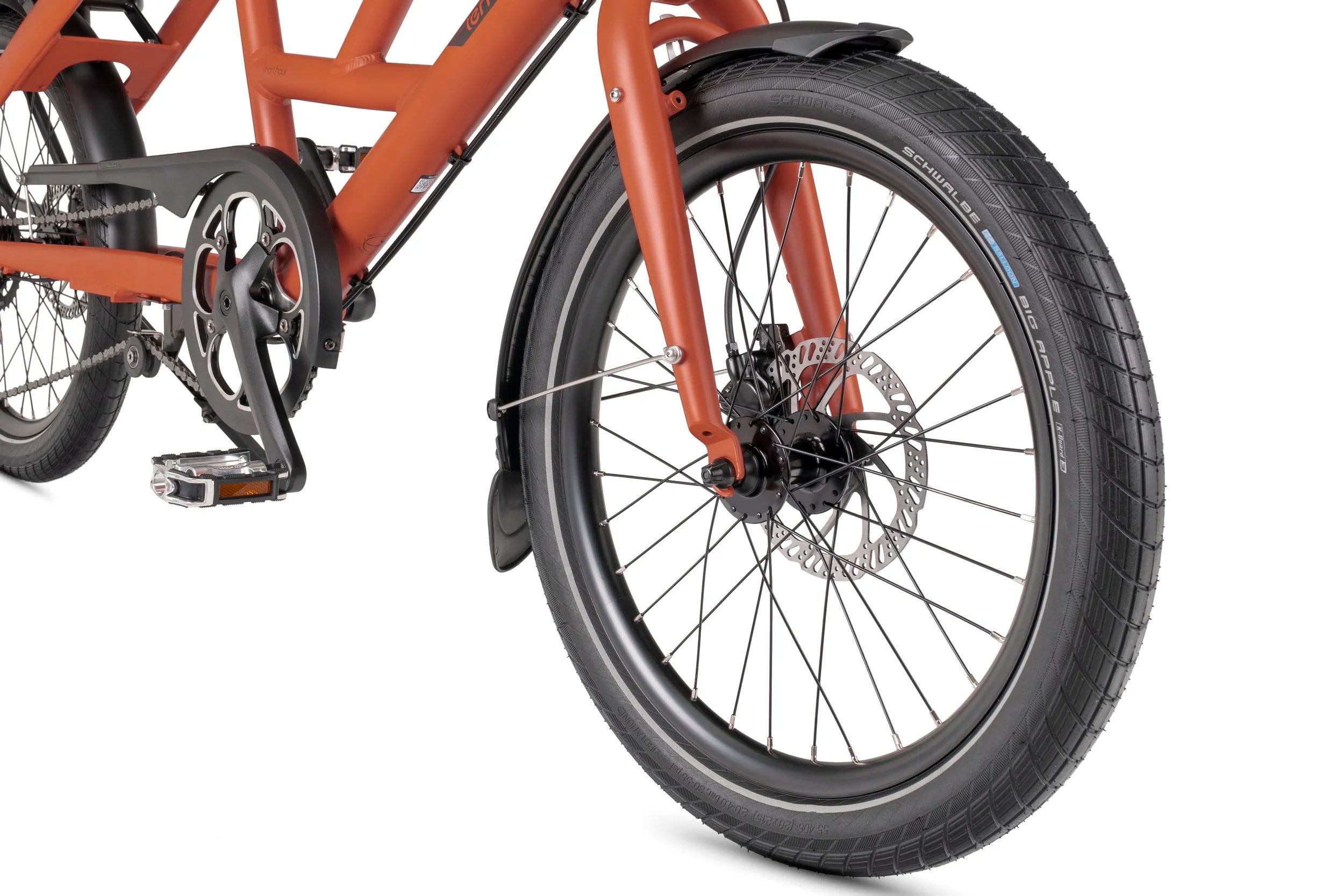

Tires	Schwalbe Big Apple, 55-406, puncture protection, Reflex
Category	Transmission
Shifter(S)	1 x 8 spd, trigger

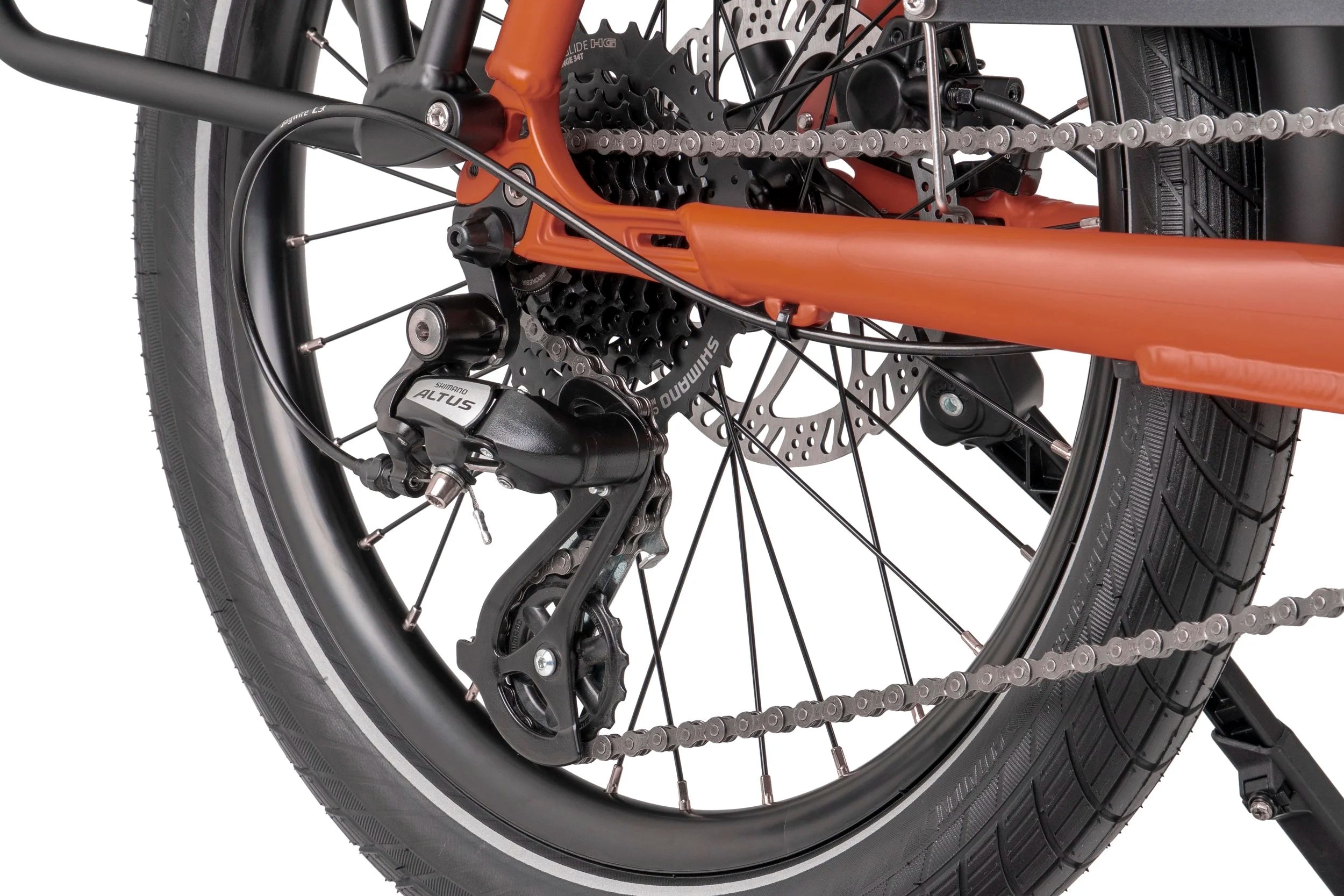

Rear Derailleur	Shimano Altus
Crankset	Forged 6061-AL crankarm
Cassette/Freewheel	11-34T, 8 spd
Bottom Bracket	FSA, cartridge, sealed bearings
Chain	KMC, 8 spd
Pedals	Urban with non-slip surface
Shifter Cable & Housing	SP
Category	Bells & Whistles
Bell	Aluminum

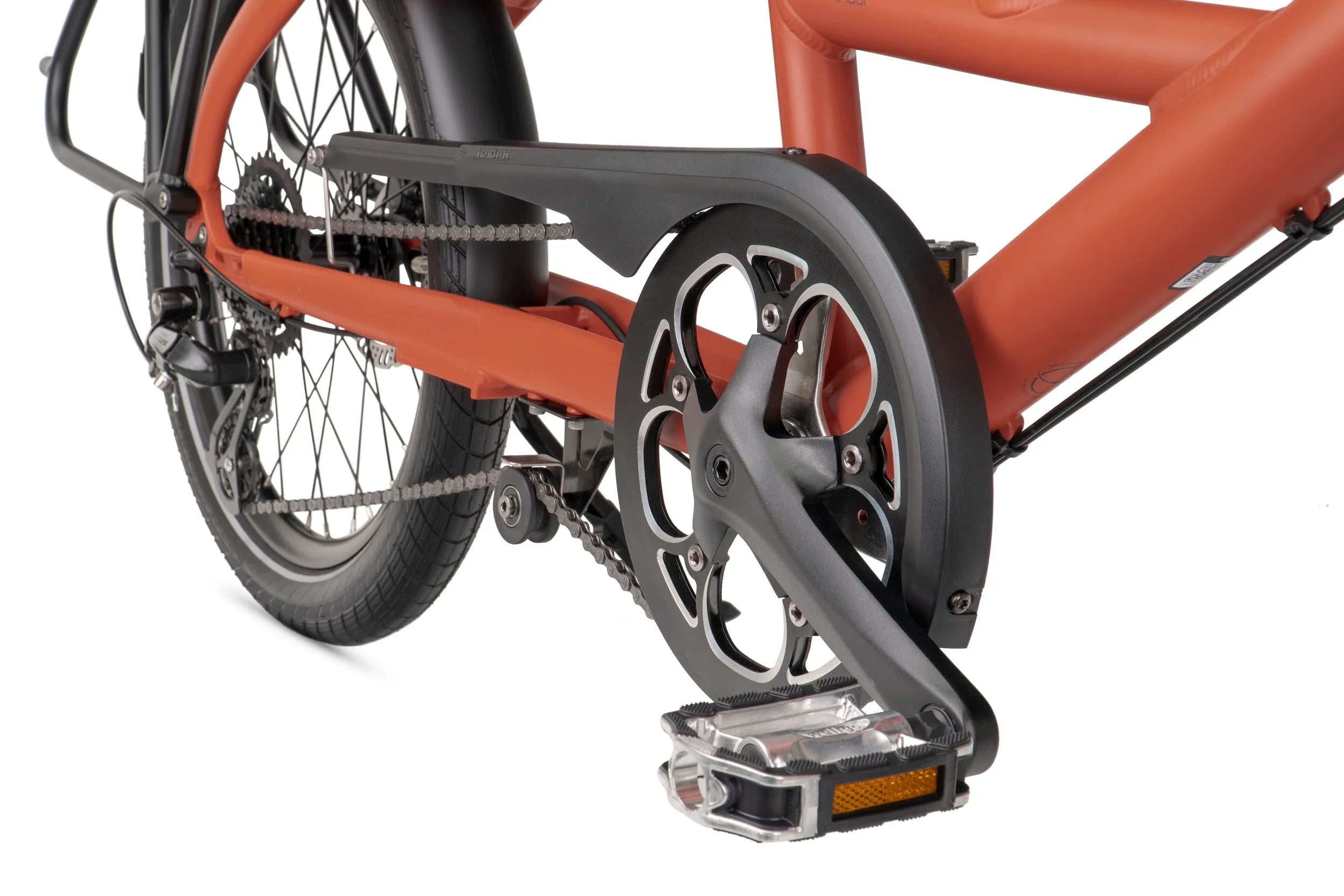

Chainguard	SKS Chainblade
Kickstand	Pletscher design, rear mount
Luggage Socket	Combo Mount
Fenders	SplashGuard, stainless hardware

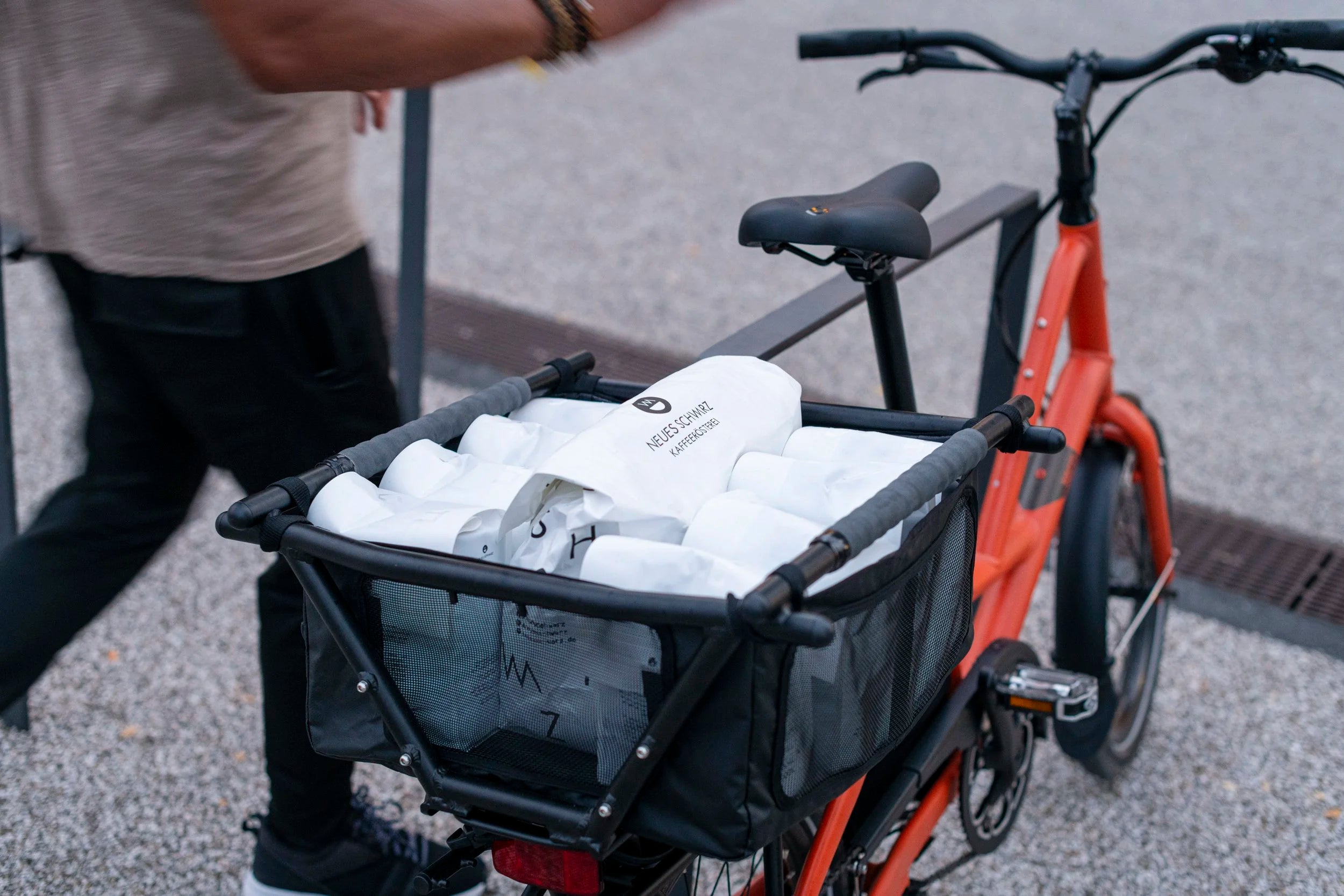

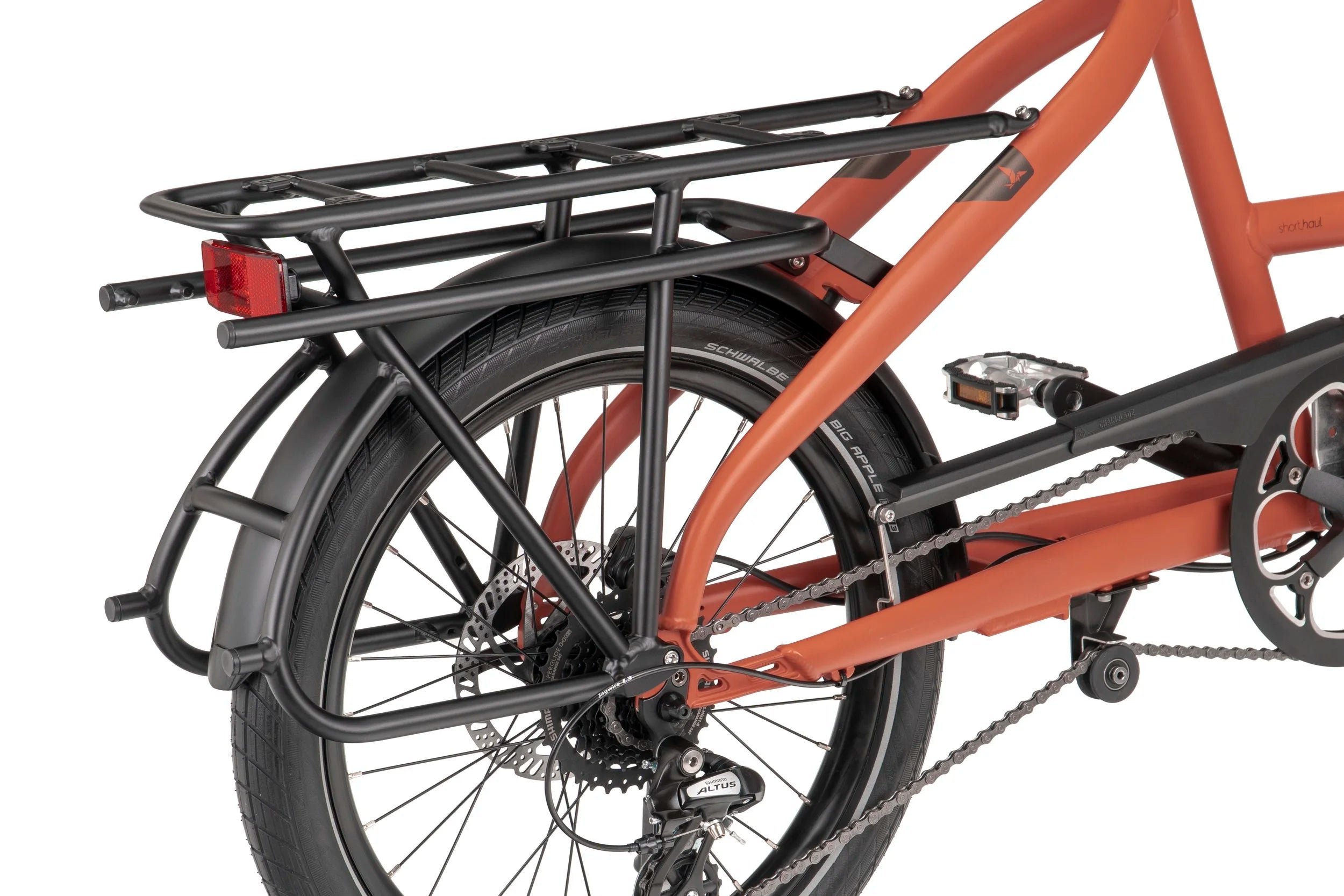

Rack(S)	Atlas Q Rack, 6 point mounting, Vertical Parking, 50 kg capacity
